Shop SCHNEIDER ELECTRIC

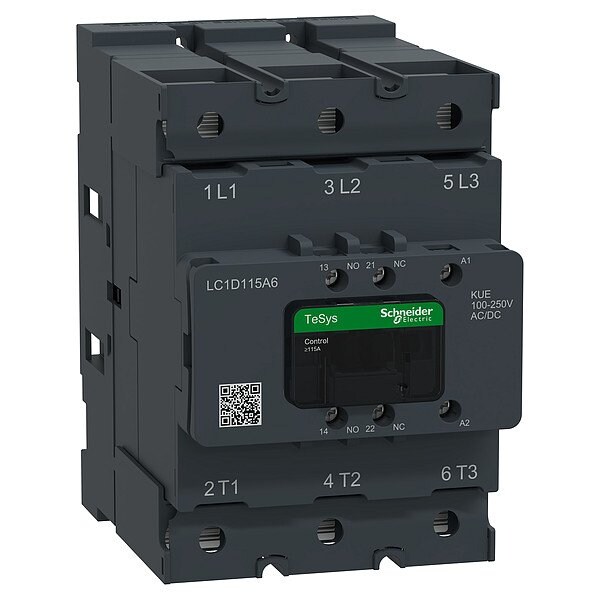

CTR Deca 115A 3P 100-250V ACDC Lug

  • Mfr # LC1D115A6KUE

  • Zoro # G822823631

product price:
$
723.99
/ea
Free Shipping & Returns

Key Features

Full Load Current - Inductive
115 A
Full Load Current - Resistive
Not Rated
Auxiliary Contact Form
1NO/1NC
Mounting Style
Plate
Number of Auxillary Contacts
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D115A6KUE
Zoro #
G822823631
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Depth
6.1 in
Overall Width
3.9 in
Overall Height
5.98 in

Details

Full Load Current - Inductive
115 A
Full Load Current - Resistive
Not Rated
Auxiliary Contact Form
1NO/1NC
Mounting Style
Plate
Number of Auxillary Contacts
2
Frequency
50/60 Hz
Embedded Surge Suppressor
Yes
Coil Voltage
100-250V AC/DC
Reversing Capability
Non-Reversing
Number of Poles
3
Electrical Operating Durability
1,000,000, 500,000
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Number of Normally Open Main Contacts
3
Contactor Style
IEC
Mechanical Operating Durability
8,000,000
NEMA Enclosure Rating
No Enclosure
Phase
Three
Maximum Operating Temperature
140 Degrees F
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-40 Degrees F
Item
IEC Contactor
Terminal Connection Type
Box Lugs
Maximum Voltage Rating
440V
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Series
Tesys Deca

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 100-250V AC/DC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 3.9 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Three
