Item

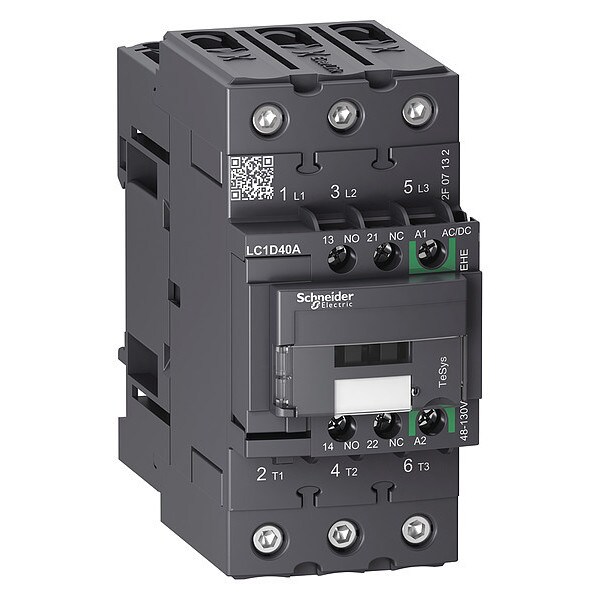

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
30 hp
Includes
Everlink Power Connections
Rated Breaking Capacity
800 A @ 440V
Environmental Attributes
Mercury Free, Pollution Degree 3
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Rated Making Capacity
800 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Overvoltage Category
CAT III
Max. Operating Watts
11 kW (at 220 to 230V AC 50 Hz AC-3), 18.5 kW (at 380 to 400V AC 50 Hz AC-3), 22 kW (at 415V AC 50 Hz AC-3), 22 kW (at 440V AC 50 Hz AC-3), 22 kW (at 500V AC 50 Hz AC-3), 30 kW (at 660 to 690V AC 50 Hz AC-3), 11 kW (at 220 to 230V AC 50 Hz AC-3e), 18.5 kW (at 380 to 400V AC 50 Hz AC-3e), 22 kW (at 415V AC 50 Hz AC-3e), 22 kW (at 440V AC 50 Hz AC-3e), 22 kW (at 500V AC 50 Hz AC-3e), 30 kW (at 660 to 690V AC 50 Hz AC-3e)
Rated Short-Time Withstand Current
72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Fuse Amps
80 A (Type 1 and 2 Power Circuit), 10 A (Signalling Circuit)
Application
Motor Control, Resistive Load
Features
Built-In Bi-Directional Peak Limiting
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Includes Protective Cover
Yes
Switching Current
5 mA (Signalling Circuit)
Signalling Circuit Frequency
25 to 400 Hz
Mechanical Durability
6 Mcycles
Electrical Durability
2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V); 2 Mcycles (35 A, AC-3e, Less than 440 V)
Rated Insulation Volts
690V
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Switching Voltage
17 V (Signalling Circuit)
Operating Speed
3600 cycles per hr
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 480V AC
30 hp
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 600V AC
30 hp
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 208V AC
10 hp
Mechanical Operating Durability
6,000,000
Mounting Style
DIN Rail, Plate
Number of Normally Open Main Contacts
3
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
2,000,000, 700,000
Horsepower @ Single Phase - 120V AC
3 hp
Full Load Current - Resistive
60 A
Horsepower @ Three Phase - 240V AC
10 hp
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 240V AC
5 hp
Full Load Current - Inductive
40 A
NEMA Enclosure Rating
No Enclosure
Maximum Operating Temperature
140 Degrees F
Conventional Free Air Thermal Current
60 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
