Shop SCHNEIDER ELECTRIC

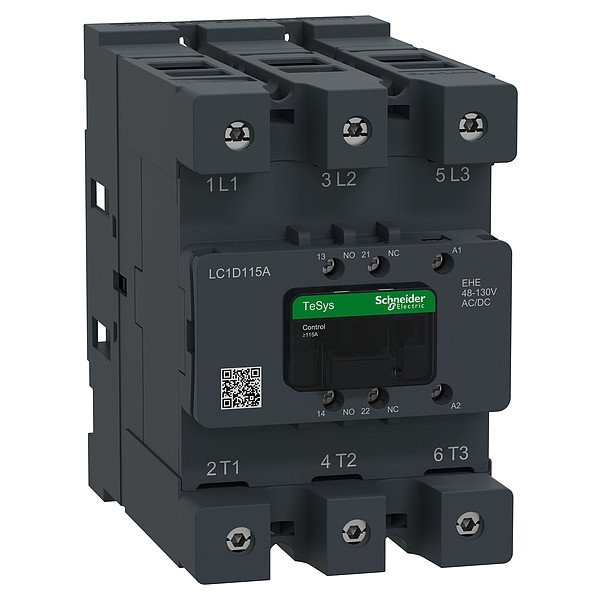

CTR Deca 115A 3P 48-130V ACDC EvLk

  • Mfr # LC1D115AEHE

  • Zoro # G822823457

product price:
$
723.99
/ea
Free Shipping & Returns

Key Features

Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Maximum Operating Temperature
140 Degrees F
Number of Normally Open Main Contacts
3
Number of Poles
3
Maximum Voltage Rating
440V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D115AEHE
Zoro #
G822823457
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Depth
6.1 in
Overall Height
5.98 in
Overall Width
3.82 in

Details

Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Maximum Operating Temperature
140 Degrees F
Number of Normally Open Main Contacts
3
Number of Poles
3
Maximum Voltage Rating
440V
Series
Tesys Deca
Reversing Capability
Non-Reversing
Embedded Surge Suppressor
Yes
Terminal Connection Type
Screw Terminals
Contactor Style
IEC
Phase
Three
Electrical Operating Durability
1,000,000, 500,000
Coil Voltage
48-130V AC/DC
Number of Auxillary Contacts
2
Full Load Current - Resistive
Not Rated
Auxiliary Contact Form
1NO/1NC
Mounting Style
Plate
Includes Auxiliary Contacts
Yes
NEMA Enclosure Rating
No Enclosure
Item
IEC Contactor
Frequency
50/60 Hz
Mechanical Operating Durability
8,000,000
Minimum Operating Temperature
-40 Degrees F
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Full Load Current - Inductive
115 A

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 48-130V AC/DC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 3.82 in, Terminal Connection Type Screw Terminals, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Three
