Shop SCHNEIDER ELECTRIC

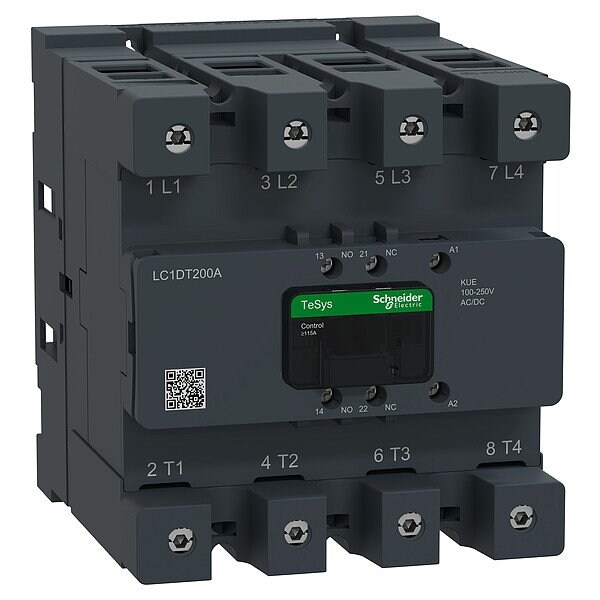

CTR Deca 200A 4P 100-250V ACDC EvLk

  • Mfr # LC1DT200AKUE

  • Zoro # G722841803

product price:
$
1,015.99
/ea
Free Shipping & Returns

Key Features

Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Overall Height
5.98 in
Maximum Voltage Rating
440V
Includes Auxiliary Contacts
Yes
Mounting Style
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1DT200AKUE
Zoro #
G722841803
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Height
5.98 in
Overall Width
5.2 in
Overall Depth
6.1 in

Details

Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Maximum Voltage Rating
440V
Includes Auxiliary Contacts
Yes
Item
IEC Contactor
Mounting Style
Plate
Terminal Connection Type
Screw Terminals
Frequency
50/60 Hz
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Reversing Capability
Non-Reversing
Number of Poles
4
Full Load Current - Inductive
200 A
Number of Normally Open Main Contacts
4
Full Load Current - Resistive
Not Rated
Auxiliary Contact Form
1NO/1NC
Embedded Surge Suppressor
Yes
Maximum Operating Temperature
140 Degrees F
Series
Tesys Deca
NEMA Enclosure Rating
No Enclosure
Electrical Operating Durability
380,000
Minimum Operating Temperature
-40 Degrees F
Number of Auxillary Contacts
2
Coil Voltage
100-250V AC/DC
Phase
Single
Contactor Style
IEC
Mechanical Operating Durability
8,000,000

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 100-250V AC/DC, Number of Poles 4, Full Load Current - Inductive 200 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 5.2 in, Terminal Connection Type Screw Terminals, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Single
