Shop SCHNEIDER ELECTRIC

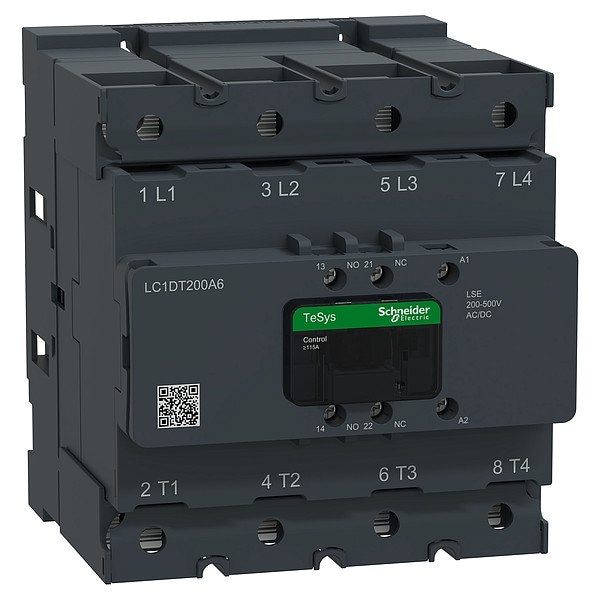

CTR Deca 200A 4P 200-500V ACDC Lug

  • Mfr # LC1DT200A6LSE

  • Zoro # G322841982

product price:
$
1,015.99
/ea
Free Shipping & Returns

Key Features

Overall Height
5.98 in
Maximum Operating Temperature
140 Degrees F
Overall Width
5.28 in
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Full Load Current - Inductive
200 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1DT200A6LSE
Zoro #
G322841982
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Height
5.98 in
Overall Width
5.28 in
Overall Depth
6.1 in

Details

Maximum Operating Temperature
140 Degrees F
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Full Load Current - Inductive
200 A
Mechanical Operating Durability
8,000,000
Terminal Connection Type
Box Lugs
Series
Tesys Deca
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
No Enclosure
Maximum Voltage Rating
440V
Reversing Capability
Non-Reversing
Number of Poles
4
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
380,000
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Phase
Single
Number of Normally Open Main Contacts
4
Number of Auxillary Contacts
2
Embedded Surge Suppressor
Yes
Coil Voltage
200-500V AC/DC
Item
IEC Contactor
Contactor Style
IEC
Mounting Style
Plate
Full Load Current - Resistive
Not Rated
Frequency
50/60 Hz
Auxiliary Contact Form
1NO/1NC

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 200-500V AC/DC, Number of Poles 4, Full Load Current - Inductive 200 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 5.28 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Single
