Shop SCHNEIDER ELECTRIC

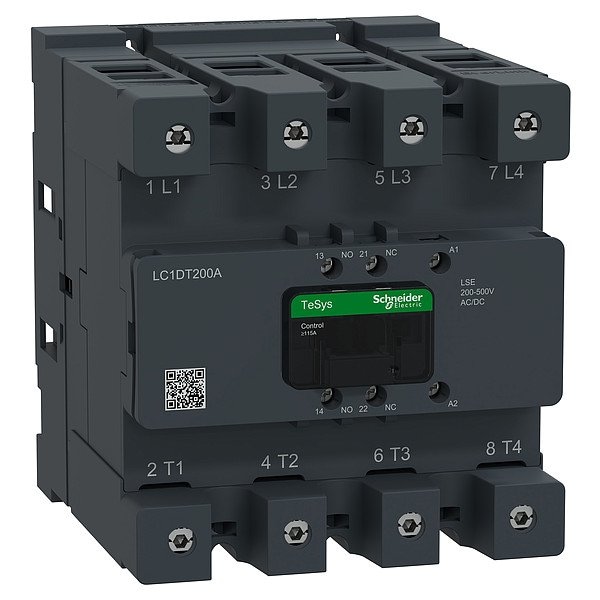

CTR Deca 200A 4P 200-500V ACDC EvLk

  • Mfr # LC1DT200ALSE

  • Zoro # G222841709

product price:
$
1,015.99
/ea
Free Shipping & Returns

Key Features

Reversing Capability
Non-Reversing
Embedded Surge Suppressor
Yes
Coil Voltage
200-500V AC/DC
Number of Normally Open Main Contacts
4
Full Load Current - Inductive
200 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1DT200ALSE
Zoro #
G222841709
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Width
5.2 in
Overall Depth
6.1 in
Overall Height
5.98 in

Details

Reversing Capability
Non-Reversing
Embedded Surge Suppressor
Yes
Coil Voltage
200-500V AC/DC
Number of Normally Open Main Contacts
4
Terminal Connection Type
Screw Terminals
Full Load Current - Inductive
200 A
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Electrical Operating Durability
380,000
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-40 Degrees F
Mechanical Operating Durability
8,000,000
Frequency
50/60 Hz
Contactor Style
IEC
NEMA Enclosure Rating
No Enclosure
Full Load Current - Resistive
Not Rated
Auxiliary Contact Form
1NO/1NC
Number of Poles
4
Phase
Single
Maximum Voltage Rating
440V
Item
IEC Contactor
Number of Auxillary Contacts
2
Series
Tesys Deca
Maximum Operating Temperature
140 Degrees F
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Mounting Style
Plate

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 200-500V AC/DC, Number of Poles 4, Full Load Current - Inductive 200 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 5.2 in, Terminal Connection Type Screw Terminals, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Single
