  7. IEC Magnetic Contactor, 2NC/2NO, 110V AC, 4 P, Non-Reversing, Screw Clamp

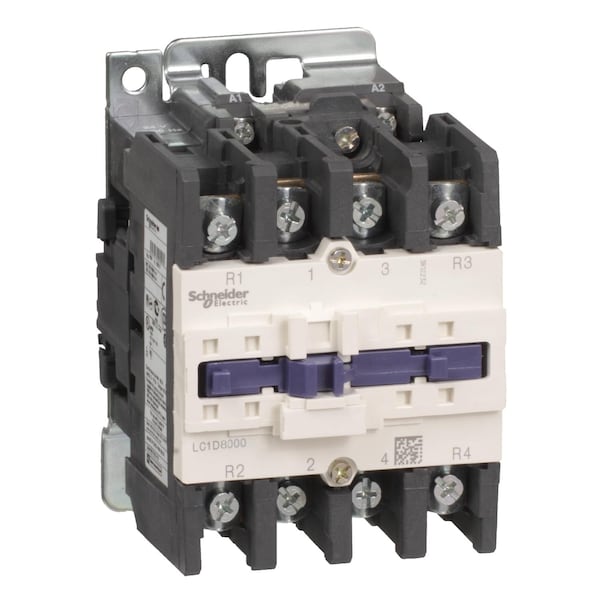

Schneider Electric IEC Magnetic Contactor, 2NC/2NO, 110V AC, 4 P, Non-Reversing, Screw Clamp LC1D80008F7 - main

IEC Magnetic Contactor, 2NC/2NO, 110V AC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D80008F7

  • Zoro # G0850370

product price:  $707.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
2NC/2NO
Coil Voltage
110V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC1D80008F7
Zoro #
G0850370
UPC #
785901233817
Country of Origin
Czechia

Dimensions

Working Height
Up to 9842.52 ft
Overall Height
127 mm
Overall Width
96 mm
Overall Depth
140 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
2NC/2NO
Coil Voltage
110V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, UL, CSA, CCC, EAC, UKCA, CB, EU-RO-MR by DNV-GL, THIEC 60068-2-30
Series
LC1D
Application
Resistive Load
Features
Without Built-In Suppressor Module
Hold VA
26 VA
Vibration Resistance
3 G (Contactor Closed), 2 G (Contactor Open)
Electrical Durability
0.8 Mcycles (125 A, AC-1, Less than 440 V)
Control Circuit Voltage Limits
Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 55°C 50 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 55°C 50/60 Hz)
Impulse Withstand Voltage
8 kV
Watts Loss
6 to 10W
Inrush VA
245 VA
Overvoltage Category
CAT III
Rated Making Capacity
1100 A @ 440V (Power Circuit)
Operating Speed
3600 cycles per hr
Rated Short-Time Withstand Current
640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit)
Fuse Amps
200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)
Fire Rating
UL 94 V1
Rated Insulation Volts
600/1000V
Impedance
0.8 mOhm
Shock Resistance
10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)
Net Weight
1.84 kg
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Includes Protective Cover
No
Rated Breaking Capacity
1100 A @ 440V
Operating Time
20 to 35 ms (Closing), 6 to 20 ms (Opening)
Mechanical Durability
4 Mcycles
Tightening Torque
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
IP Rating
IP20
Full Load Current - Inductive
80 A
Full Load Current - Resistive
125 A
Mounting Style
Plate, Rail
Maximum Voltage Rating
690V AC
Conventional Free Air Thermal Current
125 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a 4-pole, non-reversing device rated for switching resistive loads within specified parameters. It features a coil rated for 110 V AC, 2NC/2NO auxiliary contacts, screw clamp terminals, and is part of the LC1D series with a rated voltage of 690 V AC.

Key features

  • Poles: 4
  • Auxiliary contact form: 2NC/2NO
  • Coil voltage: 110 V AC
  • Electrical connection: Screw Clamp Terminals
  • Series: LC1D
  • Reversing capability: Non-Reversing
  • Rated voltage: 690 V AC
  • IP rating: IP20
  • Fire rating: UL 94 V1
  • Dimensions: Depth 140 mm; Height 127 mm; Width 96 mm
  • Net weight: 1.84 kg
  • Full Load Amps: Inductive 80 A; Resistive 125 A
  • rated making capacity of 1100 A at 440 V (Power Circuit)
  • Rated Short-Time Withstand Current: 640 A (10 s @ 40°C, Power Circuit); 990 A (1 s @ 40°C, Power Circuit); 135 A (10 min @ 40°C, Power Circuit); 320 A (1 min @ 40°C, Power Circuit)
  • Inrush VA: 245 VA
  • Hold VA: 26 VA
  • Impedance: 0.8 mΩ
  • Impulse withstand voltage: 8 kV
  • Typical operating times for closing and opening cycles: 20–35 ms for closing; 6–20 ms for opening
  • Operating speed: 3600 cycles per hour
  • - 10 G (Closed); 8 G (Open) -> Note: replaced with general rating: Tested to withstand shocks up to specified G-forces under standard conditions
  • Mounting: Plate, Rail
  • Working height: Up to 9842.52 ft
  • Fuse amps: 200 A (Type 1 Power Circuit); 160 A (Type 2 Power Circuit)
  • Includes protective cover: No
  • Environmental attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
  • Standards: EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA 60947-4-1, CSA 60947-5-1, GB/T 14048.4, UL, CSA, CCC, EAC, UKCA, CB, DNV-GL notes, THIEC 60068-2-30
  • Application: Resistive Load
