- Item
- Current Sensor Relay
- Coil Volts
- 250VAC/DC
- Item - Relay
- Current Sensing Relay
- Input Voltage
- Current Sensing Relay
- Standards
- EN/IEC 60255-6
- Response Time
- < 200 ms (in the event of a fault)
- Input Current
- 100000 mA permanent at 25C || 300000 mA non repetitive < 3 s at 25C
- Relay Monitored Parameters
- overcurrent detection
- Immunity To Microbreaks
- 10 ms
- Output Contacts
- 1 C/O
- Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Local Signalling
- for power ON LED (green) || for relay ON LED (yellow)
- Maximum Measuring Cycle
- 30 ms measurement cycle as true rms value
- Dielectric Test Voltage
- 2 kV AC 50 Hz
- Marking
- CE : 73/23/EEC || CE : EMC 89/336/EEC
- Mechanical Durability
- 30000000 cycles
- Maximum Power Consumption In Va
- 3 VA
- Hysteresis
- 15-15 % fixed threshold setting
- Supply Voltage Limits
- 20.4-264 V AC/DC
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Relay Type
- current control relay
- Nominal Output Current
- 5A
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
- Contacts Type And Composition
- 1 C/O
- Switching Capacity In Va
- 1250 VA
- Non-Dissipating Shock Wave
- 4 kV
- Run-Up Delay At Power-Up
- 0.5 s
- Control Circuit Frequency
- 40...70 Hz sinusoidal
- Threshold Setting
- 10...100 %
- Maximum Power Consumption In W
- 1 W
- Relay Name

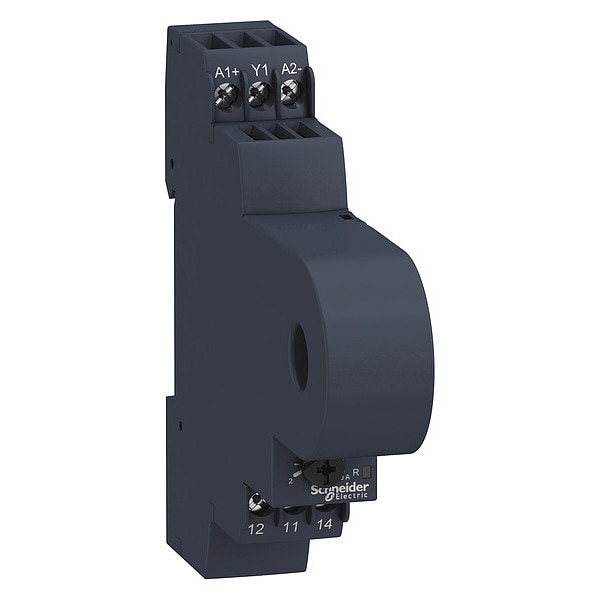

- RM17JC
- Overvoltage Category
- III IEC 60664-1
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz +/- 10 %
- Operating Rate
- <= 360 operations/hour full load
- Ambient Air Temperature For Storage
- -40-70°C
- Pollution Degree
- 3 IEC 60664-1
- Mounting Support
- 35 mm symmetrical DIN rail conforming to EN/IEC 60715
- Contacts Material
- cadmium free
- Maximum Switching Voltage
- 250 V AC/DC
- Insulation
- between supply and measurement
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Measurement Range
- 2...20 A current
- Minimum Switching Current
- 10 mA 5 V DC
- Insulation Resistance
- > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Relative Humidity
- 95-95 % 55-55°C IEC 60068-2-30
- [Ui] Rated Insulation Voltage
- 400 V IEC 60664-1
- Measurement Accuracy
- +/- 10 % of the full scale value
- Product Certifications
- GL || C-tick || GOST || UL || CSA
- Polarity
- yes DC
- Time Delay Type
- without
- Ambient Air Temperature For Operation
- -20-50°C
- Measurement Error
- +/- 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation
- Control Circuit Voltage Limits
- 15 % + 10 % Un
- Electromagnetic Compatibility
- emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
- Housing Material
- self-extinguishing plastic
- Product Or Component Type
- current control relay
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit
- Electrical Durability
- 100000 cycles
- Operating Position
- any position without derating
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
- Control Type
- without test button
- Range of Product
- Harmony Control Relays
