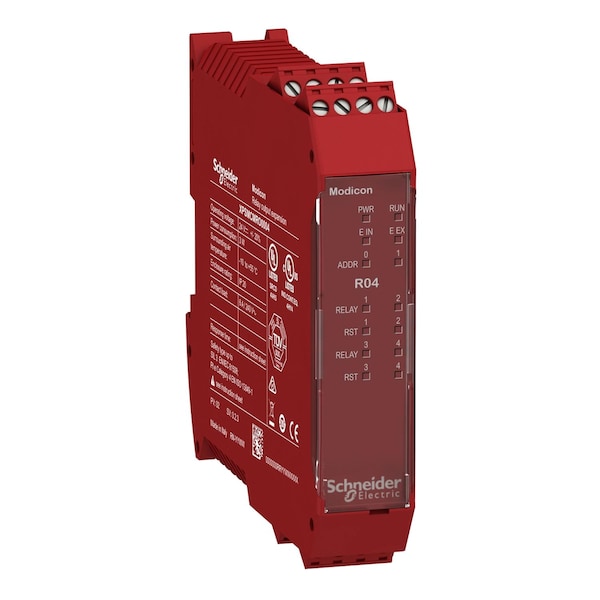

Schneider Electric Expansion module, Modicon MCM, 4 safety relay outputs, with backplane connection, screw XPSMCMRO0004 - main

Expansion module, Modicon MCM, 4 safety relay outputs, with backplane connection, screw

  • Mfr # XPSMCMRO0004

  • Zoro # G7687678

product price:  $520.99
/ea
Free Shipping & Returns

Key Features

Depth
114.5 mm
Height
99 mm
Width
22.5 mm
Standards
IEC 62061 || EN/ISO 13849-1 || EN/IEC 61800-5-1 || EN/IEC 61508
Maximum Switching Voltage
400 V AC || 250 V DC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XPSMCMRO0004
Zoro #
G7687678
UPC #
-
Country of Origin
Italy

Dimensions

Depth
114.5 mm
Height
99 mm
Width
22.5 mm

Details

Item
With Safety Relay Output Expansion Bac 4
Standards
IEC 62061 || EN/ISO 13849-1 || EN/IEC 61800-5-1 || EN/IEC 61508
Maximum Switching Voltage
400 V AC || 250 V DC
Number Of Outputs
4 relay
Maximum Switching Current
6A
Safety Level
can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || SILCL 3 IEC 62061
Electrical Durability
20000000 cycles
Cable Cross Section
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
Ip Degree Of Protection
IP20
Switching Time
12 ms
Discrete Output Number
8-8 solid state 125 mA diagnostics)
Vibration Resistance
+/-0.35 mm 10-55 Hz)EN/IEC 61496-1
Mechanical Durability
20000000 cycles
Device Short Name
XPSMCM
Quality Labels
CE
Product Certifications
TUV || RCM || cULus
Output Type
relay, 4 NO, volt-free
Electrical Connection
screw terminal
Ambient Air Temperature For Operation
-10-55°C
Pollution Degree
2
Connections - Terminals
2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
Function Of Module
monitoring safety actuators relay output
Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3
Maximum Power Dissipation In W
3 W
Minimum Switching Current
20 mA
Local Signalling
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 4 LEDs green/red RELAY K1...K4 relay contact || 4 LEDs yellow RST reset
Mounting Support
omega 35 mm DIN rail EN 50022
Overvoltage Category
II
Number Of Terminal Blocks
4
Switching Voltage
10 V DC
Insulation
250 V AC between power supply and housing EN/IEC 61800-5-1
[Us] Rated Supply Voltage
24 V - 20...20 % DC
Ambient Air Temperature For Storage
-20-85°C
Associated Fuse Rating
3.5 A, slow-blow
Shock Resistance
10 gn 16 ms 1000 shocks on each axis)EN/IEC 61496-1
Product Or Component Type
safe relay output module
Relative Humidity
10-95 %
Integrated Connection Type
backplane expansion bus
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 61800-5-1
Service Life
20 year(s)
Pvc Free
Yes
Range of Product
Preventa Safety automation

Description

With Safety Relay Output Expansion Bac 4
