- Item
- Pairs Output Module Inputs Expansion 8 2
- Electrical Connection
- screw terminal
- Standards
- EN/IEC 61800-5-1 || EN/IEC 61508 || EN/ISO 13849-1 || IEC 62061
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 61800-5-1
- Product Certifications
- cULus || TUV || RCM
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Number Of Terminal Blocks
- 6
- Device Short Name
- XPSMCM
- Connections - Terminals
- 2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
- Integrated Connection Type
- backplane expansion bus
- Discrete Output Current
- 400 mA || 100 mA
- Safety Level
- can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || SILCL 3 IEC 62061
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Power Consumption In W
- 3 W
- Power Dissipation In W
- 3 W
- Discrete Input Type
- isolated
- Vibration Resistance
- +/-0.35 mm 10-55 Hz)EN/IEC 61496-1
- Discrete Output Type
- PNP
- Ambient Air Temperature For Operation
- -10-55°C
- Insulation
- 250 V AC between power supply and housing EN/IEC 61800-5-1
- Overvoltage Category
- II
- Ip Degree Of Protection
- IP20 enclosure)
- Relative Humidity
- 10-95 %
- Quality Labels
- CE
- Output Load
- 60 Ohm
- Pollution Degree
- 2
- Function Of Module
- monitoring safety detection discrete input || monitoring safety dialogue discrete input || monitoring safety actuators discrete output
- Number Of Outputs
- 4 test line control || 2 safety outputs OSSD contactor/drive connection || 2 configurable diagnostic connection
- Number Of Inputs
- 8 digital || 2 digital external device monitoring
- Discrete Input Voltage
- 24 V DC
- Ambient Air Temperature For Storage
- -20-85°C
- Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3
- Discrete Output Voltage
- 24 V DC
- Load Type
- resistive load
- Product Or Component Type

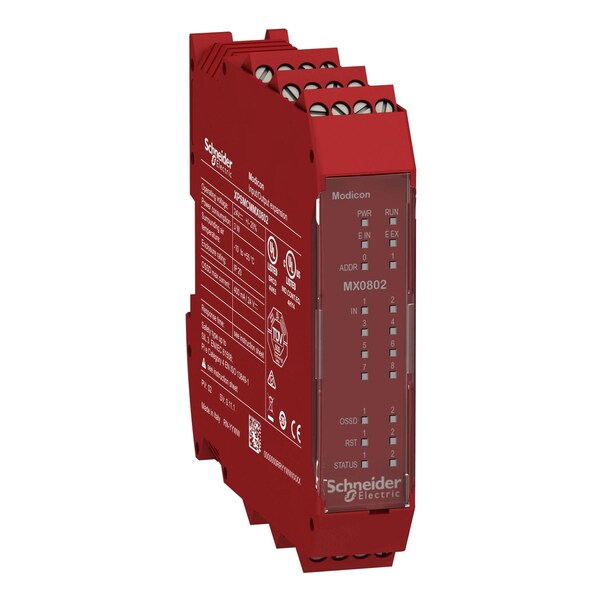

- safe mixed I/O expansion module
- Cable Cross Section
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
- Local Signalling
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 8 LEDs yellow IN input status || 2 LEDs green/red OUT output status || 2 LEDs yellow RST restart signal || 2 LEDs yellow STATUS output status
- Pvc Free
- Yes
- Service Life
- 20 year(s)
- Range of Product
- Preventa Safety automation
