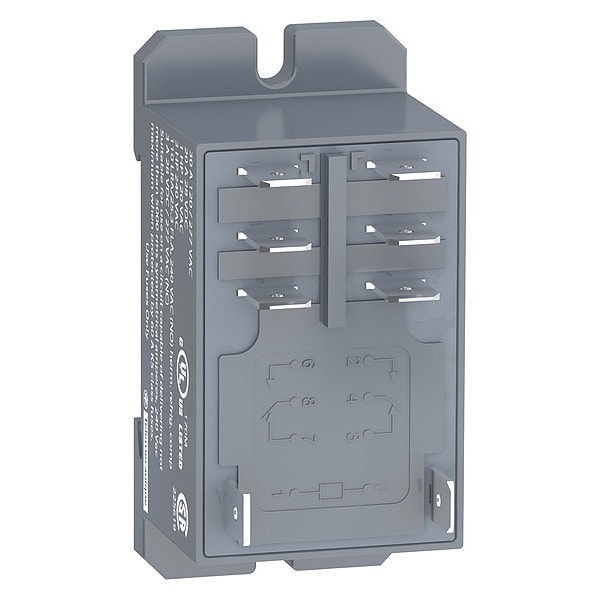

DIN Rail & Top Flange, Enclosed Power Relay, Square, 30 A, 8 Pins, Tab

Mfr # RPF2BP7
Zoro # G0351897

CAD Available

$13.45

Key Features

CAD Drawing

Mounting Style

DIN Rail & Top Flange

Electrical Connection

Tab

Base Shape

Square

Number of Pins

Coil Voltage

230V AC

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

RPF2BP7

Zoro #

G0351897

UPC #

785901437840

Country of Origin

China

Dimensions

Overall Height - Relay

1.54 in

Dimensions

1.65"H, 1.34"W, 2.68"D

Body Depth

2.68 in

Body Width

1.35 in

Flat Pin Width

0.25 in

Body Height

1.61 in

Overall Depth

1.73 in

Details

Item

Enclosed Power Relay

Mounting Style

DIN Rail & Top Flange

Electrical Connection

Tab

Base Shape

Square

Number of Pins

Coil Voltage

230V AC

Current Rating

30 A

Contact Form

DPDT

Contact Rating (AC)

30 A @ 250/277V, 3 A @ 250/277V

Contact Rating (DC)

20 A @ 28V (NO), 25 A @ 28V (NO), 3 A @ 28V (NC)

Standards

CE Certified, CSA C22.2 No 14, EN/IEC 61810-1, GOST, UL 508

Contact Material

Silver Tin Oxide

50/60

Number of Poles

Power Consumption - Relay

4.0 VA

Features

Sealed Construction

Coil Rating

4.0VA, 1.7W

Contact Amp Rating (Resistive)

30A @ 277VAC (NO), 3A @ 277VAC (NC)

Maximum Switching Voltage

250V AC

Weight

2.88 oz

Minimum Operating Temperature

-40 Degrees F

Input Voltage

184 to 253V

Operating Current

20 A at 28V DC (NO UL), 25 A at 28V DC (NO IEC), 3 A at 250V AC (NC IEC), 3 A at 277V AC (NC UL), 3 A at 28V DC (NC IEC), 3 A at 28V DC (NC UL), 30 A at 250V AC (NO IEC), 30 A at 277V AC (NO UL)

IP Rating

IP40

Horsepower @ 240V AC

3 hp

Response Time

25 msec

Motor Rated

Yes

Series

Harmony(TM) RPF Power Series

Status Indicator

No Indicator

For Use With

Hard-Wired Logic Automated Systems

Dielectric Strength

1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 4,000V AC Between Coil and Contact with Reinforced

Push-To-Test Method

No Test Button

Mechanical Operating Durability

5,000,000

Frequency

50/60 Hz

Horsepower @ 120V AC

1 hp

Resistance Properties

Shock-Resistant, Vibration-Resistant

Sealing

Sealed

Maximum Operating Temperature

131 Degrees F

Electrical Operating Durability

100,000

Power Consumption

4 VA

Protection Category

RT II

Coil Resistance

15600 Ohm at 20Â°C +/- 15 %

Dielectric Voltage

2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection

Switching Voltage

250 V IEC

CAD Available

Yes

Operating Position

Any position

Operate Time

25 ms

Vibration Resistance

3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 10 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating

Minimum Recommended Switching Capacity

6000 mW 500 mA / 12 V NO; 170 mW 10 mA / 6 V NC

Control Circuit Voltage Limits

184 to 253 V

Series Name

Power

Utilisation Coefficient

0.1

Ambient Air Temperature For Storage

-40 to 185Â°F (-40 to 85Â°C)

Maximum Switching Capacity

7500 VA/700 W

Rated Insulation Voltage

250 V IEC; 300 V UL

Shock Resistance

10 gnin operation; 30 gnnot operating

Shape Of Pin

Flat

Operating Rate

Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load

Ambient Air Temperature For Operation

-40 to 131Â°F (-40 to 55Â°C)

Drop-Out Voltage Threshold

Greater than or Equal to 0.15 Uc

Device Presentation

Complete product

Test Levels

Level A group mounting

Conventional Enclosed Thermal Current

25 A -40 to 131Â°F (-40 to 55Â°C) relays side by side without a gap; 30 A -40 to 131Â°F (-40 to 55Â°C) 13 mm gap between two relays

Average Coil Consumption

4 VA 60 Hz

Pollution Degree

Resistive Rated Load

25 A 28 V DC; 30 A 250 V AC

Average Resistance

15600 Ohm at 68Â°F (20Â°C) +/- 15%

Product Certifications

UL; CE; CSA; GOST

Rated Impulse Withstand Voltage

4 kV 1.2/50 Âµs

Release Time

25 ms

Control Circuit Voltage

230 V AC 50/60 Hz

Control Type

Without lockable test button

Contact Type and Composition

2 C/O

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 230V AC, Contact Form DPDT, Current Rating 30 A, Electrical Connection 1/4 in Tab Terminal, Flat Pin Width 0.25 in, Number of Pins 8, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 3 A @ 250/277V (NC), 30 A @ 250/277V (NO), Contact Rating (DC) 20 A @ 28V (NO), 25 A @ 28V (NO), 3 A @ 28V (NC), Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method No Button
