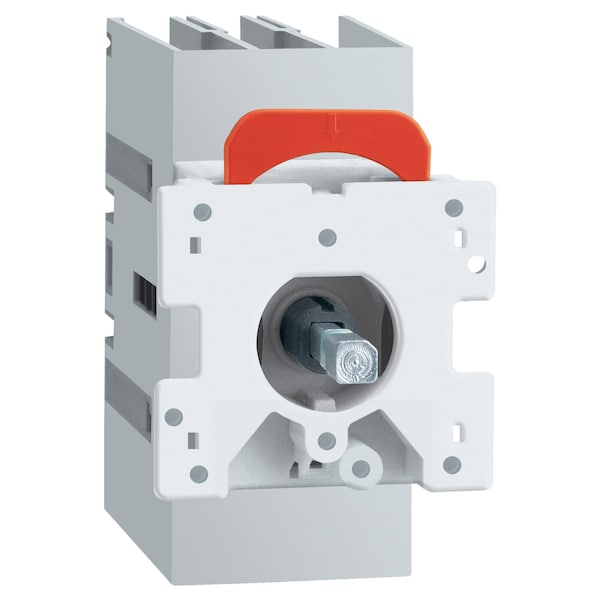

Disconnect Switch, 25 A, 690V AC, 3 pole

  • Mfr # VLS3P025D1

  • Zoro # G0858783

product price:
$
77.59
/ea

Key Features

Contact Form
3P
Current Rating
25 A
Phase
Three
Voltage
690 V
Handle Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VLS3P025D1
Zoro #
G0858783
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Height
2.87 in
Depth
3.07 in
Width
1.77 in

Details

Item
Disconnect Switch
Contact Form
3P
Current Rating
25 A
Phase
Three
Voltage
690 V
Handle Color
Gray
Standards
CSA C22.2 No 14, IEC 60947-3, UL 508
Number of Poles
3
Amps
25 A
Use
Body Switch Disconnector
IP Rating
20
Color
Gray
Device Short Name
VLS3P
Contacts Type And Composition
3 NO
Connections - Terminals
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end
Breaking Capacity
37.5 A 690 V AC-21A) || 75 A 690 V AC-22A) || 200 A 690 V AC-23A)
Ambient Air Temperature For Operation
-25-55°C
Network Frequency
50/60 Hz
Rated Conditional Short-Circuit Current
50 kA 400 V 25 A gG
Making Capacity
250 A 690 V AC-23A || 37.5 A 690 V AC-21A || 75 A 690 V AC-22A
Product Name
TeSys VARIO LS
Mounting Support
door
Product Certifications
cULus || GL
Mechanical Durability
100000 cycles
Ip Degree Of Protection
IP20 conforming to IEC 60529
Fire Resistance
960°C IEC 60695-2-11
Electrical Durability
100000 cycles AC-21A
Product Or Component Type
switch body
Intermittent Duty Class
class 120 - 60 %
Poles Description
3P
Mechanical Robustness
vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Network Type
AC
Tightening Torque
power circuit 1.8-2 N.m screw clamp terminals
Performance Level
high performance
Rated Operational Power In W
11 kW 400 V AC-23A) || 15 kW 500 V AC-23A) || 22 kW 690 V AC-23A)
Range
TeSys
IEC Terminal Connection
Power circuit screw clamp terminals 0.02 in² (10 mm²) solid; Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - without cable end
Rated Operational Current
25 A Ue: 600 V UL 508; 25 A AC-21A Ue: 400 V; 25 A AC-21A Ue: 500 V; 25 A AC-21A Ue: 690 V; 25 A AC-22A Ue: 400 V; 25 A AC-22A Ue: 500 V; 25 A AC-22A Ue: 690 V; 25 A AC-23A Ue: 400 V; 25 A AC-23A Ue: 500 V; 25 A AC-23A Ue: 690 V
UL Rated Operational Voltage
600 V AC 50/60 Hz UL 508
Iec Rated Operational Power in W
11 kW 400 V AC-23A; 15 kW 500 V AC-23A; 22 kW 690 V AC-23A)
Rated Operational Voltage
690 V AC 50/60 Hz
UL Maxium Horsepower Ratings
7.5 hp 200/208 V AC; 7.5 hp 240 V AC; 15 hp 480 V AC; 20 hp 600 V AC; 1.5 hp 120 V AC; 3 hp 240 V AC
Short Circuit Current Rating
Fuse RK5 30 A maximum: 5 kA at 600 V AC
Conventional Free Air Thermal Current
25 A (at 131°F (55°C))

Description

Disconnect Switches, Use Body Switch Disconnector, 25 A Amps, Voltage 690V AC, 20 IP Rating, Number of Poles 3, Contact Form 3NO, Height 2.87 in, Width 1.77 in, Depth 3.07 in, Standards CSA C22.2 No 14, IEC 60947-3, UL 508
