  15. Disconnect Switch, 3P, Three Phase, Indoor/Outdoor, Rotary Handle, PBT

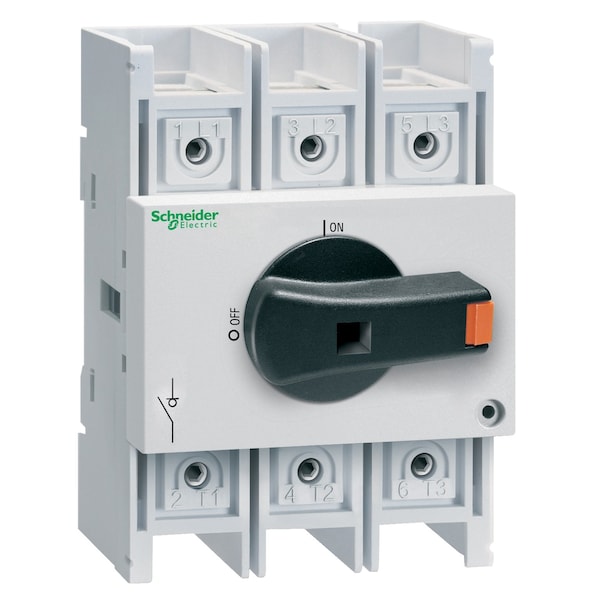

Schneider Electric Disconnect Switch, 3P, Three Phase, Indoor/Outdoor, Rotary Handle, PBT VLS3P080R2 - main

Disconnect Switch, 3P, Three Phase, Indoor/Outdoor, Rotary Handle, PBT

  • Mfr # VLS3P080R2

  • Zoro # G0859072

product price: $197.99
/ea
Free Shipping & Returns

Key Features

Contact Form
3P
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
HP
60.3 HP @ 400 V, 60.3 HP @ 500 V, 60.3 HP @ 690 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VLS3P080R2
Zoro #
G0859072
UPC #
-
Country of Origin
Italy

Dimensions

Depth
3.94 in
Height
2.76 in
Width
2.76 in

Details

Item
Disconnect Switch
Contact Form
3P
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
HP
60.3 HP @ 400 V, 60.3 HP @ 500 V, 60.3 HP @ 690 V
Voltage
690 V
Handle Color
Gray
Handle Type
Rotary Handle
Housing Material
PBT
Standards
CSA C22.2 No 4, IEC 60947-3, UL98
Number of Poles
3
Amps
47 A, 63 A, 80 A, 100 A
Duty
Intermittent
IP Rating
20
Includes
Rotary Handle
Use
Body Switch Disconnector
Color
Gray
Range
TeSys
Fixing Mode
by clips back
Suitability For Isolation
yes
Intermittent Duty Class
class 120 - 60 %
Rated Conditional Short-Circuit Current
50 kA 400 V 80 A gG
Mechanical Durability
30000 cycles
Mounting Support
back DIN rail
Breaking Capacity
120 A 690 V AC-21A) || 240 A 690 V AC-22A) || 640 A 690 V AC-23A)
Making Capacity
120 A 690 V AC-21A || 240 A 690 V AC-22A || 800 A 690 V AC-23A
Compatibility Code
VLS
Contacts Type And Composition
3 NO
Poles Description
3P
Product Or Component Type
switch body
Device Composition
handle || switch
Rotary Handle Mounting Style
direct
Connections - Terminals
power circuit screw clamp terminals 50-50 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - without cable end
Product Certifications
cULus || GL
Marking
0 - 1
Device Short Name
VLS3P
Ambient Air Temperature For Operation
-25-55°C
Network Type
AC
Performance Level
high performance
Network Frequency
50/60 Hz
Tightening Torque
power circuit 5-6 N.m screw clamp terminals
Fire Resistance
960°C IEC 60695-2-11
Rotary Handle Padlocking
1 padlock 4-4 mm
Ip Degree Of Protection
IP20 conforming to IEC 60529
Mechanical Robustness
vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Rated Operational Power In W
45 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)
Electrical Durability
30000 cycles AC-21
Product Name
TeSys VARIO LS

Description

Disconnect Switch, Use Body Switch Disconnector, Intermittent Duty, 47 A, 63 A, 80 A, 100 A Amps, Voltage 690 V AC, 60.3 HP @ 400V AC, 60.3 HP @ 500V AC, 60.3 HP @ 690V AC HP, 20 IP Rating, Number of Poles 3, Contact Form 3 NO, Height 2.76 in, Width 2.76 in, Depth 3.94 in, Standards CSA C22.2 No 4, IEC 60947-3, UL98
