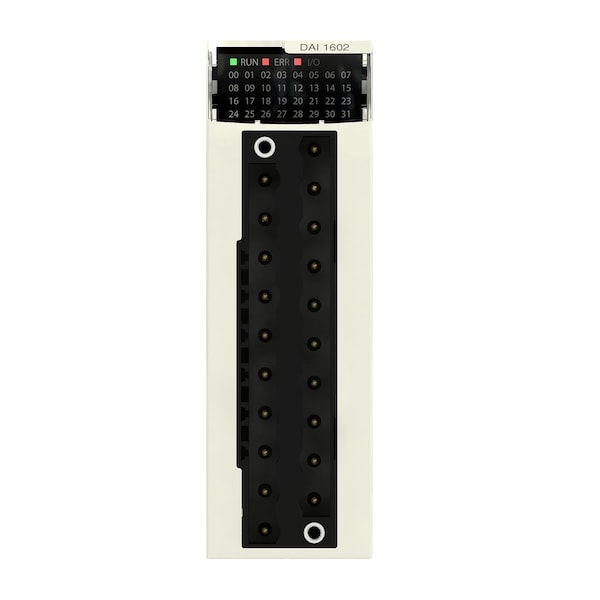

Discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

Discrete input module X80 - 16 inputs -

3 gn

30 gn

6 kOhm

discrete input module

resistive

5-95 % 55-55 °C without condensation

20 to 26 V AC || 19 to 30 V DC

<= 1 mA AC || <= 0.5 mA DC

isolated

3 mA 24 V AC || 3.9 mA 24 V DC

0 to 6561.68 ft (0 to 2000 m) || 2000 to 5000 m with derating factor

47-63 Hz

>= 2 mA AC || >= 2 mA DC

1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O

> 10 MOhm 500 V DC

1 external fuse per group of channel 0.5 A fast blow

3 W

no

16

76 mA 3.3 V DC

50/60 Hz

1500 V AC 50/60 Hz 1 minute, primary/secondary

-40-85 °C

24 V DC positive or negative || 24 V AC

20 ms

< 14 V AC/DC sensor fault || > 18 V AC/DC sensor OK

0-60 °C

15 ms

with 2-wire/3-wire proximity sensors IEC 60947-5-2 || with 2-wire/3-wire proximity sensors AC IEC 61131-2 Type 1

IP20

Modicon X80
