  13. Dual function relay, Harmony Timer Relays, 8A, 2CO, 0.1s.100h, power on delay, screw connectors, 24V DC or 24.240V AC DC

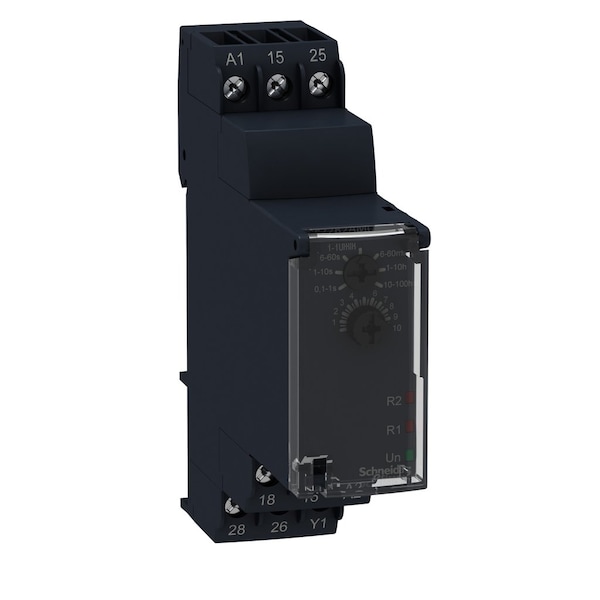

Schneider Electric Dual function relay, Harmony Timer Relays, 8A, 2CO, 0.1s.100h, power on delay, screw connectors, 24V DC or 24.240V AC DC RE22R2AMU - main

Dual function relay, Harmony Timer Relays, 8A, 2CO, 0.1s.100h, power on delay, screw connectors, 24V DC or 24.240V AC DC

  • Mfr # RE22R2AMU

  • Zoro # G510789836

product price: $62.45
/ea

Key Features

Delay Function
On Delay
Number of Delay Functions
2
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 hr
Current Rating
8 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RE22R2AMU
Zoro #
G510789836
UPC #
-
Country of Origin
Indonesia

Dimensions

Width
22.5 mm

Details

Item
Time Delay Relay
Delay Function
On Delay
Number of Delay Functions
2
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 hr
Current Rating
8 A
Contact Rating (AC)
8 A @ 250V AC
Number of Functions
2
Standards
IEC 61000-6-3, IEC 61000-6-4, IEC 61000-6-2, IEC 61812-1, IEC 61000-6-1
Status Led
Green LED flashing)timing in progress, Green LED steady)power ON, Yellow LEDrelay energised
Device Short Name
RE22
Contacts Type And Composition
2 C/O timed contact
Shock Resistance
15 gn 11 ms IEC 60068-2-27
Reset Time
120 ms on de-energisation
Mounting Support
35 mm DIN rail conforming to IEC 60715
Voltage Drift
+/- 0.2 %/V
Immunity To Microbreaks
10 ms
[Us] Rated Supply Voltage
24...240 V AC, 24 V DC
Ambient Air Temperature For Storage
-30-60°C
Nominal Output Current
8A
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Connections - Terminals
screw terminals, 2 x 1.5 mm² with cable end, screw terminals, 2 x 2.5 mm² without cable end
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2-50µs IEC 60664-1, 5 kV IEC 61812-1
Ip Degree of Protection
IP40 housing: conforming to IEC 60529, IP20 terminal block: conforming to IEC 60529, IP40 front face: conforming to IEC 60529
Power Consumption In Va
50-50 VA 240 V AC
Discrete Output Type
relay
Electrical Durability
100000 cycles for resistive load, 8 A at 250 V, AC
Setting Accuracy of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Time Delay Range
1...10 min, 10...100 h, 1...10 s, 0.1...1 s, 6...60 s, 6...60 min, 1...10 h
Time Delay Type
power on-delay
Housing Material
self-extinguishing
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
Range of Product
Harmony Timer Relays
Maximum Switching Voltage
250 V
Breaking Capacity
2000 VA
Ambient Air Temperature For Operation
-20-60°C
Relative Humidity
93-93 %, without condensation IEC 60068-2-30
Minimum Pulse Duration
30 ms, 100 ms under load
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
Mounting Position
any position in relation to normal vertical mounting plane
Maximum Switching Current
8 mA
Mechanical Durability
10000000 cycles
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Maximum Delay Response
100 ms
Voltage Range
0.85...1.1 Us
Control Type
rotary knob front panel
Minimum Switching Current
10 mA 5 V
Temperature Drift
+/- 0.05 %/°C
Tightening Torque
0.6-1 N.m IEC 60947-1
Power Consumption In W
0.7 W 24 V DC
Electromagnetic Compatibility
electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, conducted and radiated emissions class B conforming to EN 55022
Supply Frequency
50...60 Hz +/- 5 %

Description

On Delay Timer

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
