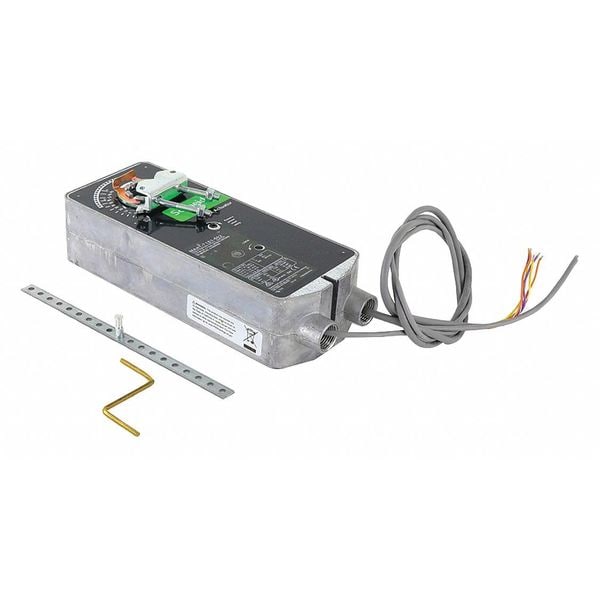

Electric Actuator, 24V, 133 lb.-in.
- Mfr # MA41-7153-502
- Zoro # G2085647
product price:Â
$
634.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Globe Valves
Includes
(2) Auxiliary Switch
Standards
CE, cULus, UL 873
Input Voltage
24V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MA41-7153-502
- Zoro #
- G2085647
- UPC #
- -
- Country of Origin
- Mexico
- Fits Brand
- Schneider Electric
- Application
- Globe Valves
- Item
- Damper Actuator
- Includes
- (2) Auxiliary Switch
- Standards
- CE, cULus, UL 873
- Input Voltage
- 24V AC/DC
- Product Type
- Damper Actuator
- For Shaft Shape
- Round, Square
- NEMA Rating
- 2
- Full Load Current
- 20 mA
- Shaft Rotation
- CW/CCW
- Minimum Operating Temperature
- 22 Degrees F
- Output Signal
- 2 to 10V DC
- Rated Torque
- 133 lb-in
- Shaft Type
- Damper Shaft
- Contact Form
- SPST
- Stroke Degree
- 95 +/- 5 Degrees
- IP Rating
- IP54
- Power Consumption
- 9.7 VA
- Spring Return
- Spring Return
- Electrical Connection Type
- Hardwired
- Maximum Operating Temperature
- 140 Degrees F
- Valve Application
- Valve
- Number of Auxiliary Switches
- 2
Description
Damper Actuator, Valve Application Valve, Rated Torque 133 lb-in, Input Voltage 24V AC/DC, Output Signal 2 to 10V DC, Contact Form SPST, Electrical Connection Type Hardwired, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Shaft Type Damper Shaft, Shaft Rotation CW/CCW, Stroke Degree 95 +/- 5 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 22 Degrees F, Overall Width 4 in, For Shaft Shape Round, Square
