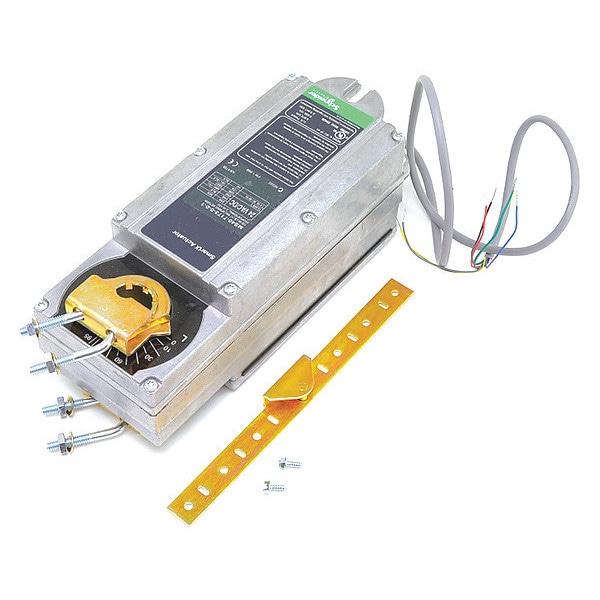

Electric Actuator, 24V, 150 lb.-in.
- Mfr # MS40-7173
- Zoro # G2086058
product price:Â
$
1,200.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Dampers, Valves
Includes
Direct Mount, Spring Return
For Use With Mfr. Model Number
VS-8223-576-5-14
Standards
CE, cULus
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MS40-7173
- Zoro #
- G2086058
- UPC #
- -
- Country of Origin
- Mexico
- Fits Brand
- Schneider Electric
- Application
- Dampers, Valves
- Item
- Actuator
- Includes
- Direct Mount, Spring Return
- For Use With Mfr. Model Number
- VS-8223-576-5-14
- Standards
- CE, cULus
- Input Voltage
- 22 to 30V DC, 24V AC
- Product Type
- Actuator
- Electrical Connection Type
- Hardwired
- Rated Torque
- 545 lb-in
- Power Rating
- 5.5W
- Spring Return
- Spring Return
- Maximum Operating Temperature
- 140 Degrees F
- IP Rating
- IP56
- Shaft Type
- 3/8 to 1/2" Round
- Minimum Operating Temperature
- -25 Degrees F
- Valve Application
- Damper and Valve
- Signal Type
- Proportional
- Power Consumption
- 7.8 VA
- Output Signal
- 2 to 10V DC
- Shaft Rotation
- CW/CCW
- NEMA Rating
- 4
Dimensions
- Overall Width
- 4 in
- Overall Height
- 10 7/8 in
- Overall Depth
- 4 in
- For Shaft Diameter
- 1/2 in
Description
Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 545 lb-in, Input Voltage 22 to 30V DC, 24V AC, Output Signal 2 to 10V DC, Electrical Connection Type Hardwired, NEMA Rating 4, IP Rating IP56, Spring Return Spring Return, Shaft Type 3/8 to 1/2 In. Round, Shaft Rotation CW/CCW, Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -25 Degrees F, Overall Width 4 in, For Shaft Diameter 1/2 in
