  8. Empty control station, Harmony XALD, XALK, plastic, yellow, 3 cut-outs, unmarked, 2 knock-outs for cable entry, UL/CSA certified

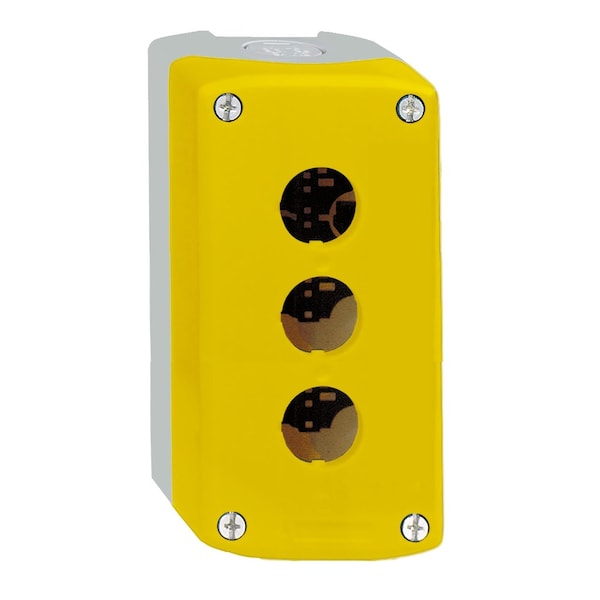

Schneider Electric Empty control station, Harmony XALD, XALK, plastic, yellow, 3 cut-outs, unmarked, 2 knock-outs for cable entry, UL/CSA certified XALK03 - main
Shop SCHNEIDER ELECTRIC

Empty control station, Harmony XALD, XALK, plastic, yellow, 3 cut-outs, unmarked, 2 knock-outs for cable entry, UL/CSA certified

  • Mfr # XALK03

  • Zoro # G300422622

product price:  $43.89
/ea

Key Features

Material
polycarbonate
Cable Entry
2 knock-outs for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Standards
JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1
Number of Vertical Rows
3
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XALK03
Zoro #
G300422622
UPC #
-
Country of Origin
United States

Details

Item
Yellow empty enclosure lid with light gr
Material
polycarbonate
Cable Entry
2 knock-outs for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Standards
JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1
Number of Vertical Rows
3
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Ik Degree of Protection
IK03 conforming to EN 50102
Group of Product
standard yellow
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
XALK
Number of Cut-Out
3 cut-outs
Main Group
3 cut-outs
Colour of Cover
yellow RAL 1021)
Control Station Application
emergency stop function, emergency switching off function
Product or Component Type
empty control station
Number of Horizontal Rows
1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Colour of Base of Enclosure
light grey RAL 7035)
Range of Product
Harmony XALK
Mounting of Block
front mounting, rear mounting
Ambient Air Temperature For Operation
-40-70°C
Nema Degree of Protection
NEMA 13, NEMA 4X
Overvoltage Category
class II IEC 60536
Product Destination
for XB5 Ø 22 mm control and signalling units
Product Or Component Type
empty control station
Mounting Of Block
front mounting || rear mounting
Group Of Product
standard yellow
Number Of Horizontal Rows
1
Number Of Cut-Out
3 cut-outs
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Number Of Vertical Rows
3
Ik Degree Of Protection
IK03 EN 50102
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Colour Of Cover
yellow RAL 1021)
Colour Of Base Of Enclosure
light grey RAL 7035)

Description

Yellow empty enclosure lid with light gr
