- Item

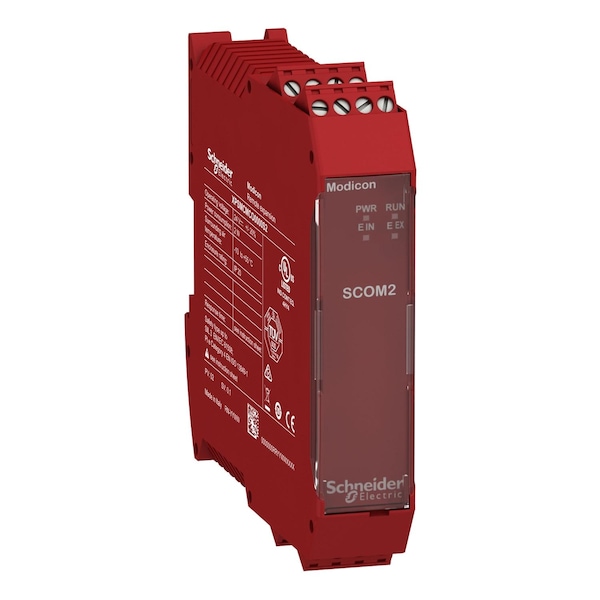

- RS485 Safe communications expansion modu
- Standards
- cULus, RCM, TÃœV
- Connector Type
- 4 ways RS485
- Range of Product
- Modicon MCM
- Ambient Air Temperature For Storage
- -20-85°C
- Pollution Degree
- 2
- Maximum Cable Distance Between Devices
- 50 m
- Current Consumption
- 0.125 mA
- Communication Port Protocol
- RS485
- Number of Port
- 2
- Range Compatibility
- Preventa XPSMCM
- Relative Humidity
- 10-95 %
- Product or Component Type
- safe communication expansion module
- Electromagnetic Compatibility
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- Cable Cross Section
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
- Service Life
- 20 year(s)
- Connections - Terminals
- 4 captive screw clamp terminals, removable terminal block
- Overvoltage Category
- II
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Quality Labels
- CE
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Safety Level
- can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, can reach SIL 3 IEC 61508, can reach SILCL 3 IEC 62061
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Operating Altitude
- 6561.68 ft (2000 m)
- Power Dissipation In W
- 3 W
- Local Signalling
- LED green PWR power ON, LED green RUN operating, LED red E IN internal error, LED red E EX external error
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
- Ip Degree of Protection
- IP20
- Vibration Resistance
- +/-0.35 mm 10-55 Hz)IEC 61496-1
- Ambient Air Temperature For Operation
- -10-55°C
- Pvc Free
- Yes
- Device Short Name
- XPSMCM
- Product Certifications
- cULus || RCM || TÅ“V
- Number Of Port
- 2
- Ip Degree Of Protection
- IP20
- Product Or Component Type
- safe communication expansion module
