Item
Pairs Output Modules Expansion Digital 2
Standards
ISO 13849-1, IEC 61800-5-1, IEC 62061, IEC 61508
Cable Cross Section
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
Electrical Connection
screw terminal
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 61800-5-1
[Us] Rated Supply Voltage
24 V - 20...20 % DC
Range of Product
Preventa Safety automation
Local Signalling
1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 2 LEDs green/red OUT output status, 2 LEDs yellow RST restart signal, 2 LEDs yellow STATUS output status
Vibration Resistance
+/-0.35 mm 10-55 Hz)IEC 61496-1
Safety Level
can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
Number of Outputs
2 safety outputs OSSD contactor/drive connection, 2 configurable diagnostic connection
Number of Terminal Blocks
4
Ip Degree of Protection
IP20 enclosure)
Power Consumption In W
3 W
Product or Component Type

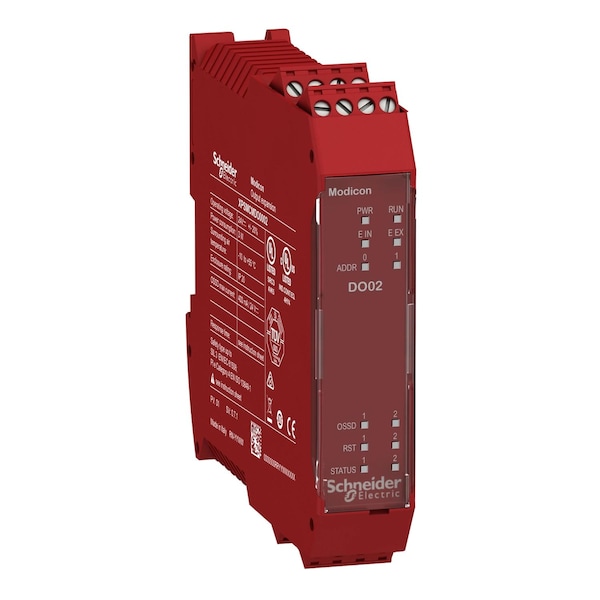

safe output expansion module
Relative Humidity
10-95 %
Ambient Air Temperature For Storage
-20-85°C
Function of Module
monitoring safety actuators discrete output
Power Dissipation In W
3 W
Discrete Input Voltage
24 V DC
Discrete Output Voltage
24 V DC
Number of Inputs
2 digital external device monitoring
Electromagnetic Compatibility
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Discrete Input Type
isolated
Mounting Support
omega 35 mm DIN rail EN 50022
Integrated Connection Type
backplane expansion bus
Ambient Air Temperature For Operation
-10-55°C
Insulation
250 V AC between power supply and housing IEC 61800-5-1
Connections - Terminals
2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Shock Resistance
10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Discrete Output Current
400 mA, 100 mA
Ip Degree Of Protection
IP20 enclosure)
Product Or Component Type
safe output expansion module
Number Of Outputs
2 safety outputs OSSD contactor/drive connection || 2 configurable diagnostic connection
Product Certifications
TUV || cULus || RCM
Rated Impulse Withstand Voltage
4 kV IEC 61800-5-1
Function Of Module
monitoring safety actuators discrete output
Rated Supply Voltage
24 V - 20 to 20% DC
Number Of Terminal Blocks
4
Number Of Inputs
2 digital external device monitoring
