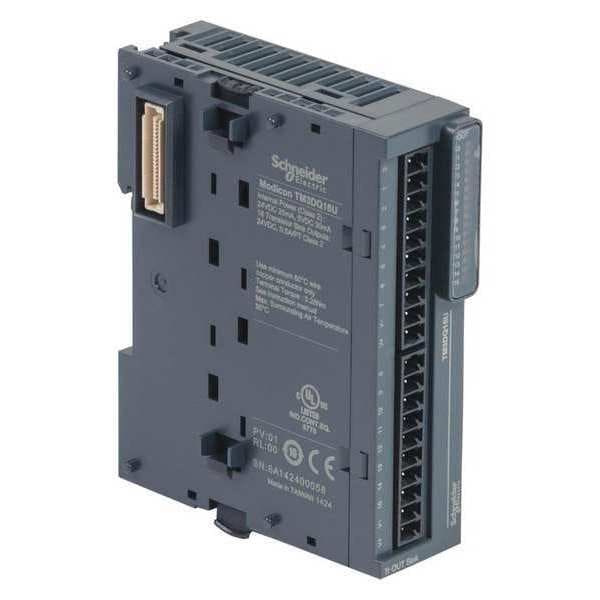

Ext Module, 0 inputs, 16 outputs, Term Blck

  • Mfr # TM3DQ16U

  • Zoro # G0040306

product price:  $240.99
/ea
Free Shipping & Returns

Key Features

Power Required
24V DC
Number of Inputs
0
Number of Outputs
16
For Use With
Modicon Mfr. No.M221 PLC
Includes
Terminal Block
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TM3DQ16U
Zoro #
G0040306
UPC #
785901981855
Country of Origin
Korea, Republic of

Dimensions

Depth
81.3 mm
Height
90 mm
Width
21.4 mm
Overall Depth
3.2 in
Overall Height
3.54 in
Overall Width
0.84 in

Details

Item
Discrete Output Module
Power Required
24V DC
Number of Inputs
0
Number of Outputs
16
For Use With
Modicon Mfr. No.M221 PLC
Includes
Terminal Block
Features
Capable of Controlling Variable Speed Drives
Product Type
Discrete Output Module
Output Type
(16) Transistor
Standards
EN/IEC 61010-2-201 || EN/IEC 61131-2
Surge Withstand
1 kV I/O common mode EN/IEC 61000-4-5 DC
Pollution Degree
2
Range Compatibility
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Insulation
between output and internal logic 500 V AC || non-insulated between outputs
Discrete I/O Number
16
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Product Or Component Type
discrete output module
Ambient Air Temperature For Operation
-10-35°C vertical installation || -10-55°C horizontal installation
Discrete Output Number
16
Discrete Output Type
transistor
Response Time
450µs (turn-on) || 450µs (turn-off)
Storage Altitude
0-3000 m
Product Certifications
cULus || CE || UKCA || RCM || EAC
Marking
CE
Ambient Air Temperature For Storage
-25-70°C
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Maximum Voltage Drop
<0.4 V
Maximum Leakage Current
0.1 mA transistor output
Current Consumption
5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 15 mA 5 V DC via bus connector at state on) || 20 mA 24 V DC via bus connector at state on)
Local Signalling
for output status 1 LED per channel (green)
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Maximum Cable Distance Between Devices
unshielded cable <30 m transistor output
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Discrete Output Current
300 mA transistor output
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Magnetic Fields
30 A/m 50/60 Hz EN/IEC 61000-4-8
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Discrete Output Logic
negative logic (sink)
Ip Degree Of Protection
IP20 with protective cover in place
Shock Resistance
15 gn 11 ms
Resistance To Fast Transients
1 kV I/OEN/IEC 61000-4-4
Discrete Output Voltage
24 V DC transistor output
Electrical Connection
10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for outputs
Wire Connection Type
Screw Clamp
Current Rating
20 mA
Output Circuit Current - Maximum
300 mA
Compatible Product Type
Programmable Logic Controllers
Compatible with Series
M221
Mounting Style
Panel
Output Circuit Voltage - Maximum
24 V DC

Description

Discrete Output Module, Number of Inputs 0, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 16, Includes Terminal Block, Power Required 24V DC, Features Capable of Controlling Variable Speed Drives, Product Type Extension Module, Current Rating 20 mA, Mounting Style Panel, Wire Connection Type Screw Clamp
