- Item

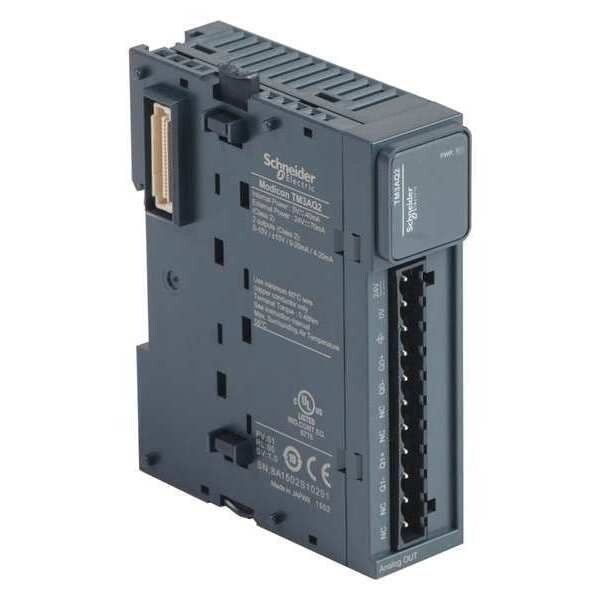

- Analog Output Module
- Power Required
- 24V DC
- Number of Inputs
- 0
- Number of Outputs
- 2
- For Use With
- Modicon Mfr. No.M221 PLC
- Includes
- Terminal Block
- Features
- Capable of Controlling Variable Speed Drives
- Product Type
- Analog Output Module
- Output Type
- (2) Analog
- Standards
- EN/IEC 61010-2-201 || EN/IEC 61131-2
- Current Consumption
- 40 mA 5 V DC via bus connector full load || 35 mA 5 V DC via bus connector no load || 30 mA 24 V DC via external supply no load || 70 mA 24 V DC via external supply full load
- [Us] Rated Supply Voltage
- 24 V DC
- Resistance To Conducted Disturbances
- 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Vibration Resistance
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
- Storage Altitude
- 0-3000 m
- Insulation
- between output and supply 1500 V AC || between output and internal logic 500 V AC
- Non-Linearity
- +/- 0.01 %FS
- Shock Resistance
- 15 gn 11 ms
- Ambient Air Temperature For Operation
- -10-55°C horizontal installation || -10-35°C vertical installation
- Stabilisation Time
- 1 ms
- Range Compatibility
- Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
- Electrical Connection
- 11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for outputs and supply
- Product Or Component Type
- analog output module
- Local Signalling
- for PWR 1 LED (green)
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20
- Analogue Output Number
- 2
- Repeat Accuracy
- +/- 0.4 %FS
- Ambient Air Temperature For Storage
- -25-70°C
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
- Lsb Value
- 2.44 mV 0 to 10 V voltage || 4.88 mV - 10 to 10 V voltage || 4.88µA 0 to 20 mA current || 3.91µA 4 to 20 mA current
- Resistance To Fast Transients
- 1 kV EN/IEC 61000-4-4 I/O)
- Marking
- CE
- Electromagnetic Emission
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
- Analogue Output Type
- current 4 to 20 mA || current 0 to 20 mA || voltage 0 to 10 V || voltage - 10 to 10 V
- Resistance To Magnetic Fields
- 30 A/m EN/IEC 61000-4-8
- Type Of Cable
- twisted shielded pairs cable <30 m output
- Pollution Degree
- 2
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Supply Voltage Limits
- 20.4-28.8 V
- Resistance To Electrostatic Discharge
- 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
- Absolute Accuracy Error
- +/- 0.1 % of full scale at 25°C || +/- 1 % of full scale
- Load Type
- resistive
- Surge Withstand
- 1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV output common mode EN/IEC 61000-4-5
- Analogue Output Resolution
- 11 bits + sign || 12 bits
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Load Impedance Ohmic
- 1 kOhm voltage || 300 Ohm current
- Temperature Drift
- +/- 0.006 %FS/°C
- Operating Altitude
- 0 to 6561.68 ft (0 to 2000 m)
- Cross Talk
- <= 1 LSB
- Conversion Time
- 1 ms + 1 ms per channel + 1 controller cycle time
- Output Ripple
- 20 mV
- Product Certifications
- CE || UKCA || RCM || EAC || cULus
- Compatible with Brand
- Schneider
- Output Circuit Voltage - Maximum
- 10 V
- Output Circuit Voltage - Minimum
- 0 V
- Compatible Product Type
- Programmable Logic Controllers
- Mounting Style
- Panel
- Current Rating
- 40 mA
- Output Circuit Current - Minimum
- 4 mA
- Output Circuit Current - Maximum
- 20 mA
- Compatible with Series
- Modicon, M221, M241, M251, M262
- Wire Connection Type
- Screw Clamp
