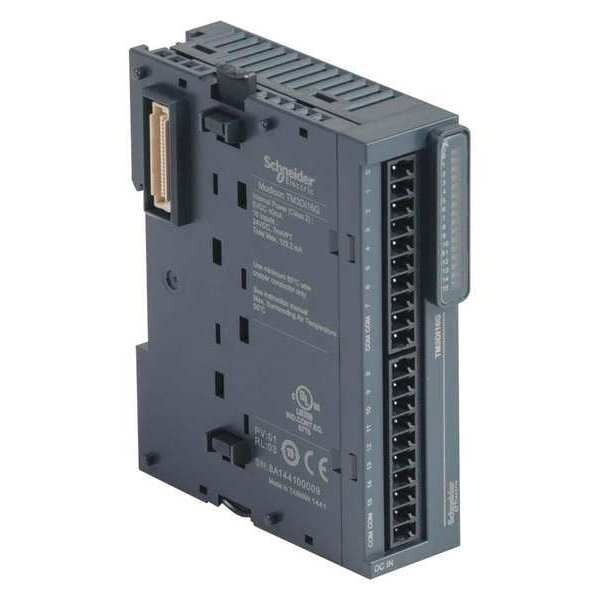

- Item
- Discrete Input Modules
- Power Required
- 24V DC
- Number of Inputs
- 16
- Number of Outputs
- 0
- For Use With
- Modicon Mfr. No.M221 PLC
- Includes
- Terminal Block
- Features
- Plate or Panel with Fixing Kit
- Product Type
- Discrete Input Modules
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201
- Current State 1 Guaranteed
- >= 2.5 mA input)
- Resistance To Fast Transients
- 1 kV I/OEN/IEC 61000-4-4
- Current Consumption
- 40 mA 5 V DC via bus connector at state on) || 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off)
- Operating Altitude
- 0 to 6561.68 ft (0 to 2000 m)
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Discrete Input Number
- 16 input IEC 61131-2 type 3
- Vibration Resistance
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
- Range Compatibility
- Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
- Maximum Cable Distance Between Devices
- unshielded cable <50 m regular input
- Electromagnetic Emission
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
- Ambient Air Temperature For Operation
- -10-35°C vertical installation || -10-55°C horizontal installation
- Discrete Input Current
- 7 mA input
- Resistance To Magnetic Fields
- 30 A/m 50/60 Hz EN/IEC 61000-4-8
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
- Local Signalling
- for input status 1 LED per channel (green)
- Discrete I/O Number
- 16
- Discrete Input Voltage Type
- DC
- Product Certifications
- CE || cULus || UKCA || RCM || EAC
- Discrete Input Logic
- sink or source (positive/negative)
- Shock Resistance
- 15 gn 11 ms
- Pollution Degree
- 2
- Current State 0 Guaranteed
- <= 1 mA input)
- Marking
- CE
- Product Or Component Type
- discrete input module
- Ip Degree Of Protection
- IP20 with protective cover in place
- Surge Withstand
- 1 kV I/O common mode EN/IEC 61000-4-5 DC
- Discrete Input Voltage
- 24 V
- Storage Altitude
- 0-3000 m
- Insulation
- between input and internal logic 500 V AC || non-insulated between inputs
- Electrical Connection
- 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs
- Voltage State 1 Guaranteed
- 15 to 28.8 V input
- Response Time
- 4 ms (turn-on) || 4 ms (turn-off)
- Resistance To Conducted Disturbances
- 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Input Impedance
- 3.4 kOhm
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Resistance To Electrostatic Discharge
- 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
- Ambient Air Temperature For Storage
- -25-70°C
- Voltage State 0 Guaranteed
- 0 to 5 V input
- Input Type
- (16) Discrete
- Compatible with Series
- Modicon, M221, M241, M251, M262
- Input Circuit Voltage - Maximum
- 24 V DC
- Mounting Style
- Panel
- Compatible Product Type
- Programmable Logic Controllers
- Compatible with Brand
- Schneider
- Current Rating
- 7 mA
- Input Circuit Current - Maximum
- 7 mA
