- Item

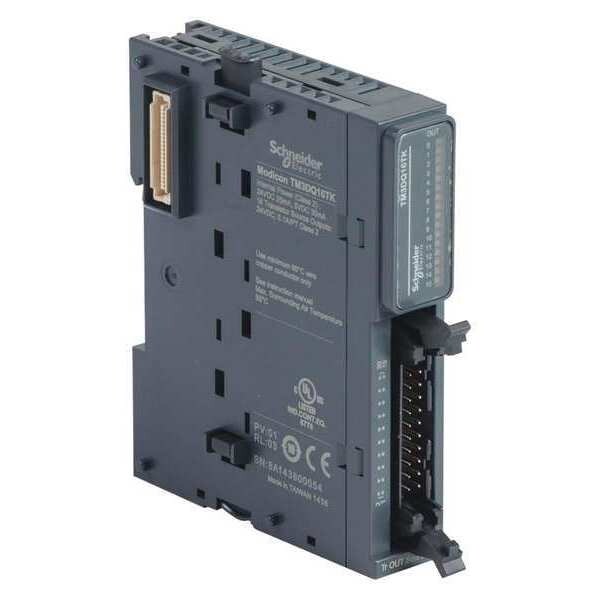

- Discrete Output Module
- Power Required
- 24V DC
- Number of Inputs
- 0
- Number of Outputs
- 16
- For Use With
- Modicon Mfr. No.M221 PLC
- Includes
- Terminal Block
- Features
- Capable of Controlling Variable Speed Drives
- Product Type
- Discrete Output Module
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201
- Output Type
- (16) Transistor
- Operating Altitude
- 0 to 6561.68 ft (0 to 2000 m)
- Local Signalling
- for output status 1 LED per channel (green)
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Maximum Cable Distance Between Devices
- unshielded cable <5 m transistor output
- Maximum Tungsten Load
- <9.6 W transistor output
- Ip Degree Of Protection
- IP20 with protective cover in place
- Resistance To Electrostatic Discharge
- 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
- Current Consumption
- 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 15 mA 5 V DC via bus connector at state on) || 20 mA 24 V DC via bus connector at state on)
- Product Or Component Type
- discrete output module
- Response Time
- 450µs (turn-on) || 450µs (turn-off)
- Resistance To Magnetic Fields
- 30 A/m 50/60 Hz EN/IEC 61000-4-8
- Resistance To Fast Transients
- 1 kV I/OEN/IEC 61000-4-4
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Surge Withstand
- 1 kV I/O common mode EN/IEC 61000-4-5 DC
- Marking
- CE
- Pollution Degree
- 2
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
- Electromagnetic Emission
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
- Discrete Output Current
- 100 mA transistor output
- Maximum Leakage Current
- 0.1 mA transistor output
- Discrete Output Voltage
- 24 V DC transistor output
- Storage Altitude
- 0-3000 m
- Maximum Voltage Drop
- <0.4 V
- Ambient Air Temperature For Storage
- -25-70°C
- Vibration Resistance
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
- Discrete I/O Number
- 16
- Product Certifications
- cULus || CE || UKCA || RCM || EAC
- Shock Resistance
- 15 gn 11 ms
- Range Compatibility
- Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
- Discrete Output Type
- transistor
- Insulation
- between output and internal logic 500 V AC || non-insulated between outputs
- Discrete Output Logic
- positive logic (source)
- Electrical Connection
- HE-10 connector for outputs
- Discrete Output Number
- 16
- Ambient Air Temperature For Operation
- -10-35°C vertical installation || -10-55°C horizontal installation
- Resistance To Conducted Disturbances
- 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Mounting Style
- Panel
- Output Circuit Voltage - Maximum
- 24 V DC
- Current Rating
- 20 mA
- Compatible with Series
- M221
- Output Circuit Current - Maximum
- 100 mA
- Compatible Product Type
- Programmable Logic Controllers
