  11. Extension Cartridge, 2 outputs, 0-10 VDC

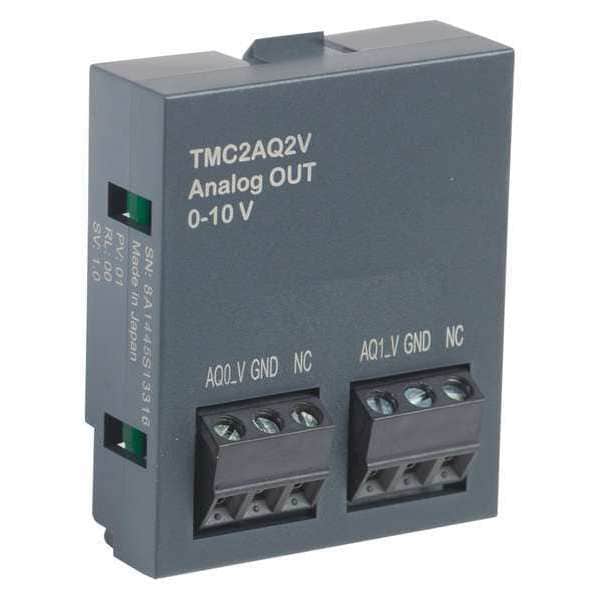

Schneider Electric Extension Cartridge, 2 outputs, 0-10 VDC TMC2AQ2V - main

Extension Cartridge, 2 outputs, 0-10 VDC

  • Mfr # TMC2AQ2V

  • Zoro # G0040120

product price: $122.99
/ea
Free Shipping & Returns

Key Features

Power Required
0 to 10 V
Number of Inputs
0
Number of Outputs
2
For Use With
Modicon Mfr. No.M221 PLC
Features
2 Analog Voltage Outputs, I/O Extension Cartridge
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TMC2AQ2V
Zoro #
G0040120
UPC #
785901278221
Country of Origin
Japan

Dimensions

Height
41 mm
Width
35 mm
Depth
15 mm
Overall Width
1.38 in
Overall Depth
0.59 in
Overall Height
1.61 in

Details

Item
Analog Output Module
Power Required
0 to 10 V
Number of Inputs
0
Number of Outputs
2
For Use With
Modicon Mfr. No.M221 PLC
Features
2 Analog Voltage Outputs, I/O Extension Cartridge
Product Type
Analog Output Module
Output Type
(2) Analog
Load Impedance Ohmic
>= 2 kOhm
Conversion Time
20 ms
Electrical Connection
3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for outputs
Stabilisation Time
40 ms
Lsb Value
2.44 mV 0 to 10 V voltage
Immunity To Microbreaks
10 ms
Repeat Accuracy
+/- 0.4 %FS
Analogue Output Type
voltage 0 to 10 V
Product Or Component Type
analogue output cartridge
Load Type
resistive
Absolute Accuracy Error
+/- 1 % of full scale || +/- 0.3 % of full scale at 25°C
Insulation
non-insulated between analogue output and internal logic
Product Compatibility
Modicon M221C
Non-Linearity
+/- 0.01 %FS
Temperature Drift
+/- 0.02 %FS/°C
Cross Talk
<= 1 LSB
Type Of Cable
twisted shielded pairs cable
Maximum Cable Distance Between Devices
twisted shielded pairs cable <30 m output
Analogue Output Resolution
12 bits
Analogue Output Number
2
Compatible with Series
M221C
Wire Connection Type
Screw Clamp
Input Circuit Voltage - Minimum
0 V
Compatible Product Type
Programmable Logic Controllers
Output Circuit Current - Maximum
20 mA
Input Circuit Voltage - Maximum
10 V
Output Circuit Voltage - Minimum
0 V
Input Circuit Current - Maximum
20 mA
Input Circuit Current - Minimum
4 mA
Output Circuit Voltage - Maximum
10 V
Output Circuit Current - Minimum
4 mA

Description

Analog Output Module, Number of Inputs 0, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 2, Power Required 0 to 10 V, Product Type Extension Module, Wire Connection Type Screw Clamp
