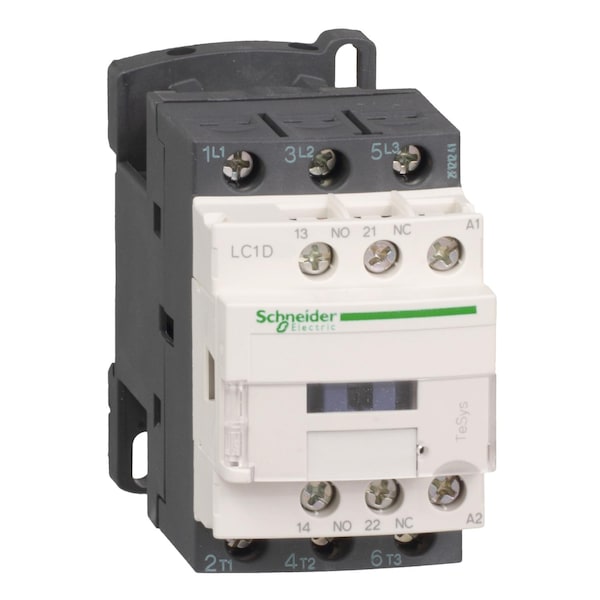

IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D12E7

  • Zoro # G0569110

product price:  $163.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V AC
Number of Poles
3
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
25 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D12E7
Zoro #
G0569110
UPC #
785901213260
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
86 mm
Overall Width
45 mm
Overall Height
77 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V AC
Number of Poles
3
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
25 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, LROS, DNV, BV, RINA, GOST, GL, CSA, CCC, UL, UKCA, THIEC 60068-2-30
HP @ 3 Phase - 575V
10 hp
Series
LC1D
Features
Without Built-In Suppressor Module
Application
Motor Control, Resistive Load
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Breaking Capacity
250 A @ 440V
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Impulse Withstand Voltage
6 kV
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Switching Current
5 mA (Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Rated Short-Time Withstand Current
105 A (at 40 Degrees C for 10 s Power Circuit), 210 A (at 40 Degrees C for 1 s Power Circuit), 30 A (at 40 Degrees C for 10 min Power Circuit), 61 A (at 40 Degrees C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Non-Overlap Time
1.5 ms
Electrical Durability
2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (12 A, AC-3e, Less than 440 V)
Impedance
2.5 mOhm
Rated Insulation Volts
600/690V
Watts Loss
2 to 3W
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Inrush VA
70 VA
Overvoltage Category
CAT III
Switching Voltage
17 V (Signalling Circuit)
Mechanical Durability
15 Mcycles
Fire Rating
UL 94 V1
IP Rating
IP20
Signalling Circuit Frequency
25 to 400 Hz
Fuse Amps
10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
Tightening Torque
1.7 Nm
Net Weight
0.325 kg
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Max. Operating Watts
3 kW (at 220 to 230V AC 50/60 Hz AC-3), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3), 7.5 kW (at 500V AC 50/60 Hz AC-3), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 3.7 kW (at 400V AC 50/60 Hz AC-4), 3 kW (at 220 to 230V AC 50/60 Hz AC-3e), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3e), 7.5 kW (at 500V AC 50/60 Hz AC-3e), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Operating Speed
3600 cycles per hr
Includes Protective Cover
Yes
Full Load Current - Inductive
12 A
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Full Load Current - Resistive
25 A
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Three Phase - 240V AC
3 hp
Horsepower @ Three Phase - 208V AC
3 hp
Mounting Style
Plate, Rail
Maximum Voltage Rating
690V AC, 300V DC
Conventional Free Air Thermal Current
25 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)

Description

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole, non-reversing device with 1NC/1NO auxiliary contacts and a 48 V AC coil. It uses screw clamp terminals and is rated for operation within specified load types. The unit is in the LC1D series and can be mounted on plate or rail in control panels.

Poles / Auxiliary contacts: 3 poles; 1NC/1NO auxiliary contacts

  • Coil voltage: 48 V AC; Electrical terminals: Screw Clamp
  • Rated voltage: 690 V AC / 300 V DC; Reversing capability: Non-Reversing
  • Mounting: Plate, Rail; IP rating: IP20; Includes protective cover: Yes
  • Series: LC1D
  • Dimensions: Depth 86 mm; Height 77 mm; Width 45 mm
  • Net weight: 0.325 kg
  • Electrical ratings: Resistive full load 25 A; Inductive full load 12 A; Rated making capacity 250 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)
  • Fusing: 10 A (Signalling Circuit); 40 A (Type 1 Power Circuit); 25 A (Type 2 Power Circuit)
  • Mechanical/electrical durability: Mechanical 15 Mcycles; Impulse withstand: 6 kV
  • Operating times: 12–22 ms (Closing); 4–19 ms (Opening)
  • Non-overlap time: 1.5 ms
  • Other: Signalling frequency 25–400 Hz; Shock resistance 15 G (Closed), 10 G (Open); Vibration 4 G (Closed), 2 G (Open); Hold VA 7.5 VA (60 Hz, 20°C); 7 VA (50 Hz, 20°C)
