  15. Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white, 30mm, universal LED, plain lens

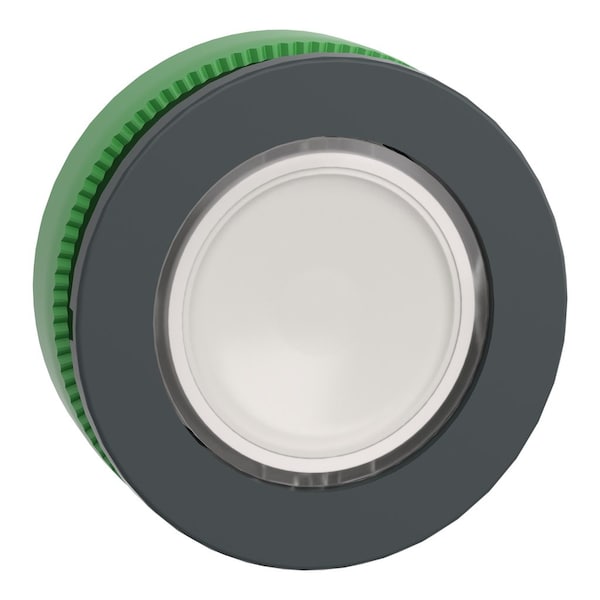

Schneider Electric Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white, 30mm, universal LED, plain lens ZB5FW313 - main

Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white, 30mm, universal LED, plain lens

  • Mfr # ZB5FW313

  • Zoro # G7655288

product price: $17.25
/ea

Key Features

Type of Operator
white flush, unmarked
NEMA Rating
NEMA 13 || NEMA 4X
Standards
UL || CSA
Width
37 mm
Height
37 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FW313
Zoro #
G7655288
UPC #
-
Country of Origin
France

Dimensions

Width
37 mm
Height
37 mm
Depth
30 mm
Mounting Diameter
30.5 mm

Details

Item
White Illumated Push Button
Type of Operator
white flush, unmarked
NEMA Rating
NEMA 13 || NEMA 4X
Standards
UL || CSA
Operator Color
white
IP Rating
IP66 IEC 60529 || IP67 || IP69 || IP69K
Type Of Operator
spring return
Header
built-in-flush
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Group of Product
flush push integral LED
Electrical Composition Code
M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED
Overvoltage Category
class II IEC 60536
Ambient Air Temperature For Storage
-40-70°C
Marking
unmarked
Protective Treatment
TC
Ik Degree of Protection
IK03 conforming to EN 50102
Product or Component Type
head for illuminated push-button
Range of Product
Harmony XB5
Device Presentation
basic element
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Compatibility
universal LED
Main Group
illum push-button
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Bezel Material
dark grey plastic
Mechanical Durability
10000000 cycles
Ambient Air Temperature For Operation
-40-70°C
Device Short Name
ZB5
Shape of Signaling Unit Head
round
Operator Additional Information
with plain lens

Description

White Illumated Push Button
