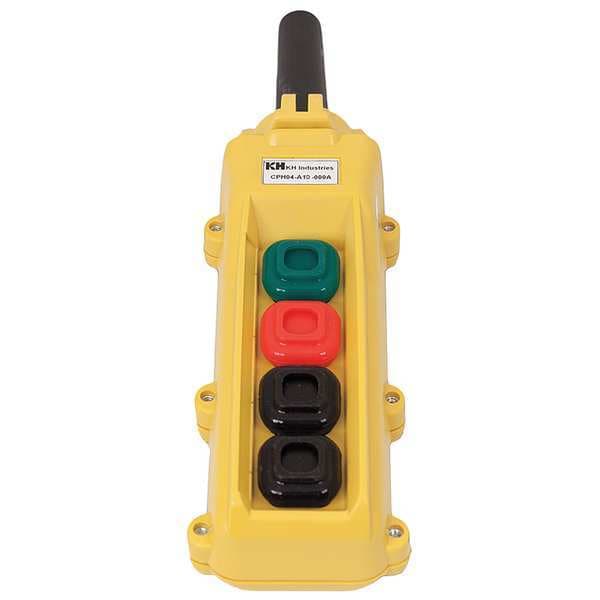

Kh Industries Pendant Station, 4, Push Button, NO, NC CPH04-B1D-000A - main

Pendant Station, 4, Push Button, NO, NC

  • Mfr # CPH04-B1D-000A

  • Zoro # G8564866

product price: $391.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Legend
On/Off
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CPH04-B1D-000A
Zoro #
G8564866
UPC #
-
Country of Origin
China

Dimensions

Width
3.1 in
Height
7.7 in
Depth
1.5 in
Overall Width
3.1 in
Overall Depth
1.5 in
Overall Height
7.7 in

Details

Item
Pendant Control Station
Contact Form
1NO/1NC
Legend
On/Off
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
4
NEMA Rating
4x
Hub Style
Dead-End
Contact Rating
0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC
Housing Color
Yellow
Standards
cUL, UL Listed
Action
Maintained/Maintained/Momentary/Momentary
Hub
5/16 in to 53/64 in
Mechanical Interlock
Yes
Housing Material
ABS
Includes
Cable Bushing(s)
Number of Speeds
2
Enclosure Material
Thermoplastic
Operator Color
Yellow
IP Rating
IP65
Switch Type
Buttons 1 and 2: Maintained On/Off; Buttons 3 and 4: Two Speed Momentary with Interlock
Enclosure Color
Yellow
Product Type
Pendant Control Station
Hazardous Location Specification
Not Rated
DC Contact Rating
0.4 A @ 120 V, 2 A @ 24 V
AC Contact Rating
5 A @ 125/240 V
NEMA Enclosure Rating
4, 4X
Includes Mechanical Interlock
Mechanical Interlock Included
Maintained Action Release
Push/Pull
Operator Configuration
(4) Push Buttons
Resistance Properties
Corrosion Resistant, Shock Resistant, Vibration Resistant
Speed
Two
Cable Bushing
.31-.83

Description

Pendant Control Station, Number of Operators 4, Number of Pilot Lights 0, Legend On/Off, Type of Operator Push Button, Action Maintained/Maintained/Momentary/Momentary, Operator Color Yellow, Contact Form 1NO/1NC, Mechanical Interlock Yes, NEMA Rating 4X, Contact Rating 0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC, IP Rating IP65, Hub 5/16 in to 53/64 in, Height 7.7 in, Width 3.1 in, Depth 1.5 in, Enclosure Material Thermoplastic, Enclosure Color Yellow, Standards cUL, UL Listed
