  15. Head for non illuminated push button, Harmony XB5, plastic, projecting, blue, 22mm, spring return, booted, unmarked

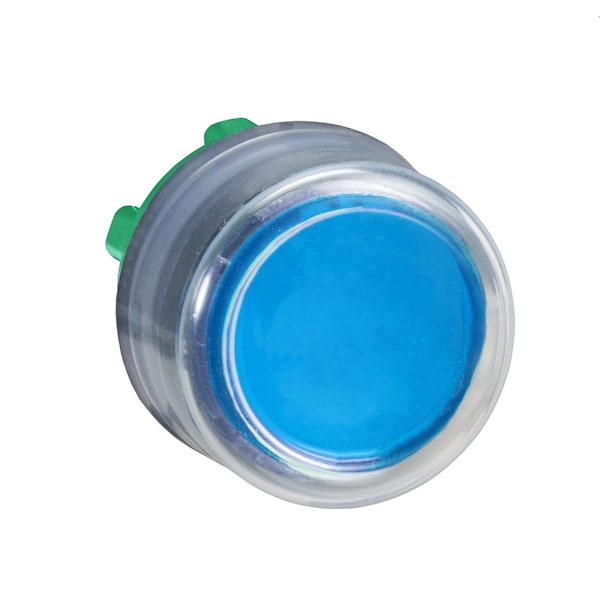

Schneider Electric Head for non illuminated push button, Harmony XB5, plastic, projecting, blue, 22mm, spring return, booted, unmarked ZB5AP6 - main

Head for non illuminated push button, Harmony XB5, plastic, projecting, blue, 22mm, spring return, booted, unmarked

  • Mfr # ZB5AP6

  • Zoro # G4062999

product price: $20.35
/ea

Key Features

Standards
EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
Bezel Material
dark grey plastic
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ik Degree Of Protection
IK03 IEC 50102
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AP6
Zoro #
G4062999
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Width
30 mm
Cad Overall Depth
35 mm
Mounting Diameter
22 mm
Cad Overall Height
30 mm

Details

Item
Push button head,plastic,projecting,b
Standards
EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
Bezel Material
dark grey plastic
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ik Degree Of Protection
IK03 IEC 50102
Product Compatibility
not compatible with legend holder
Type Of Operator
spring return
Operator Profile
blue projecting, unmarked
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Ambient Air Temperature For Operation
-40-70°C
Product Certifications
DNV || LROS (Lloyds register of shipping) || GL || UL Listed || BV || CSA
Device Short Name
ZB5
Product Or Component Type
head for non-illuminated push-button
Device Presentation
basic element
Overvoltage Category
class II IEC 60536
Shape Of Signaling Unit Head
round
Head Type
standard
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TH
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Mechanical Durability
10000000 cycles
Ambient Air Temperature For Storage
-40-70°C
Operator Additional Information
clear boot
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Range of Product
Harmony XB5

Description

Push button head,plastic,projecting,b
