Item

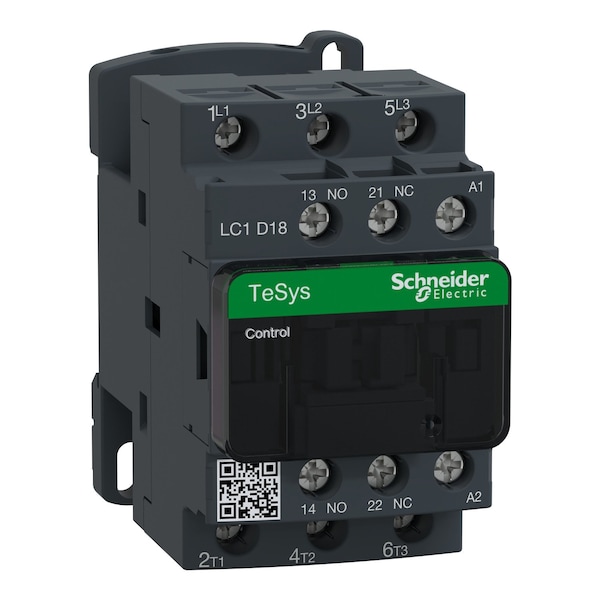

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Full Load Amps-Inductive
18 A
Full Load Amps-Resistive
32 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
15 hp
Frame / Series / Class / Code
TeSys
Max. Operating Watts
4 kW (at 220 to 230V AC 50/60 Hz AC-3), 7.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 9 kW (at 415 to 440V AC 50/60 Hz AC-3), 10 kW (at 500V AC 50/60 Hz AC-3), 10 kW (at 660 to 690V AC 50/60 Hz AC-3), 4 kW (at 400V AC 50/60 Hz AC-4), 4 kW (at 220 to 230V AC 50/60 Hz AC-3e), 7.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 9 kW (at 415 to 440V AC 50/60 Hz AC-3e), 10 kW (at 500V AC 50/60 Hz AC-3e), 10 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Features
Without Built-In Suppressor Module
Electrical Durability
1.65 Mcycles (18 A, AC-3, Less than 440 V); 1 Mcycles (32 A, AC-1, Less than 440 V); 1.65 Mcycles (18 A, AC-3e, Less than 440 V)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Rated Insulation Volts
600/690V
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Switching Voltage
17 V (Signalling Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Overvoltage Category
CAT III
Rated Short-Time Withstand Current
145 A (at 40 Degrees C for 10 s Power Circuit), 240 A (at 40 Degrees C for 1 s Power Circuit), 40 A (at 40 Degrees C for 10 min Power Circuit), 84 A (at 40 Degrees C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Operating Speed
3600 cycles per hr
Fuse Amps
10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Application
Motor Control, Resistive Load
Mechanical Durability
15 Mcycles
Includes Protective Cover
Yes
Signalling Circuit Frequency
25 to 400 Hz
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage
6 kV
Rated Breaking Capacity
300 A @ 440V
Switching Current
5 mA (Signalling Circuit)
Mechanical Operating Durability
15,000,000
Electrical Operating Durability
1,000,000, 1,650,000
Maximum Operating Temperature
140 Degrees F
Full Load Current - Inductive
18 A
NEMA Enclosure Rating
No Enclosure
Horsepower @ Single Phase - 120V AC
1 hp
Horsepower @ Three Phase - 208V AC
5 hp
Mounting Style
DIN Rail, Plate
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 600V AC
15 hp
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 480V AC
10 hp
Horsepower @ Three Phase - 240V AC
5 hp
Maximum Voltage Rating
690V AC
Minimum Operating Temperature
-40 Degrees F
Embedded Surge Suppressor
No
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Single Phase - 240V AC
3 hp
Full Load Current - Resistive
32 A
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 32 A (at 60°C Power Circuit)
