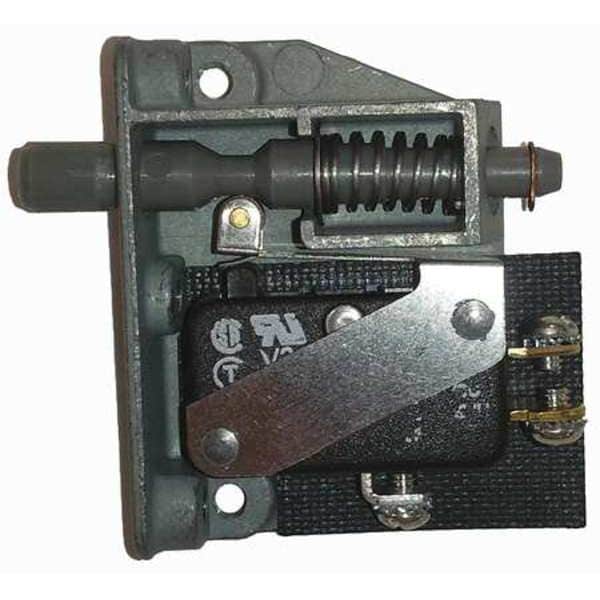

Honeywell Door Switch, SPDT, Screw Terminals, 15A 23AC2 - main

Door Switch, SPDT, Screw Terminals, 15A

  • Mfr # 23AC2

  • Zoro # G4553832

product price: $63.29
/ea

Key Features

Includes
Stainless Steel Bracket
HP
1/3hp @ 125/250V AC
Contact Form
SPDT
Switch Function
3 Position, Push Momentary, Pull Maintained
Terminals
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
23AC2
Zoro #
G4553832
UPC #
-
Country of Origin
Mexico

Dimensions

Length
1.5 in
Depth
0.5 in
Height
1.5 in
Length (Straight Wireway)
1.5 in
Nominal Dimensions
HxW 1.81x1.97" (46.0x50.0mm)
Overall Width
1.59 in
Overall Height
1.81 in

Details

Item
Door Switch
Includes
Stainless Steel Bracket
HP
1/3hp @ 125/250V AC
Contact Form
SPDT
Switch Function
3 Position, Push Momentary, Pull Maintained
Terminals
Screw
AC Contact Rating
15 A @ 250 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Actuator Material
Polyester
Operating Temp. Range
-65 Degrees to 180 Degrees F
Type of Actuator
Threaded Push Rod Plunger
Standards
CSA, UL Listed
Electrical Rating
15A/125-250VAC, 0.5A/125VDC, 0.25A/250VDC
Poles/Contacts
SPDT 1NO 1NC
Operator
Plastic Rod with Hole
Nominal Current
15A
Construction
Phenolic Case, Stainless Steel Bracket, Thermoplastic Rod
Connection
Screw Terminal
Free Position
0.375" (9.5mm) max
Switch Type
Door Interlock Switch
Operating Position
0.203" (5.16mm) OP min
Operating Temperature
-67 to 185 Degree F (-55 to 85 Degree C)
Series
AC
Horsepower
1/2 @ 125/250V AC
Operating Temperature - Minimum
-40 Degrees F
Current
15 A
Terminal Connection Type
Screw Terminals
Number of Positions
3
Switch Action
Maintained/Momentary
Operating Temperature - Maximum
185 Degrees F

Description

Door Switch, Contact Form SPDT, Switch Function 3 Position, Push Momentary, Pull Maintained, Screw Terminals, AC Contact Rating 15 A @ 250 V, DC Contact Rating 0.25 A @ 250 V, 0.5 A @ 125 V, HP 1/3hp @ 125/250V AC, Type of Actuator Threaded Push Rod Plunger, Actuator Material Polyester, Depth 0.5 in, Height 1.5 in, Length 1.5 in, Operating Temp. Range -65 Degrees to 180 Degrees F, Standards CSA, UL Listed, Includes Stainless Steel Bracket
