  7. IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Screw Clamp

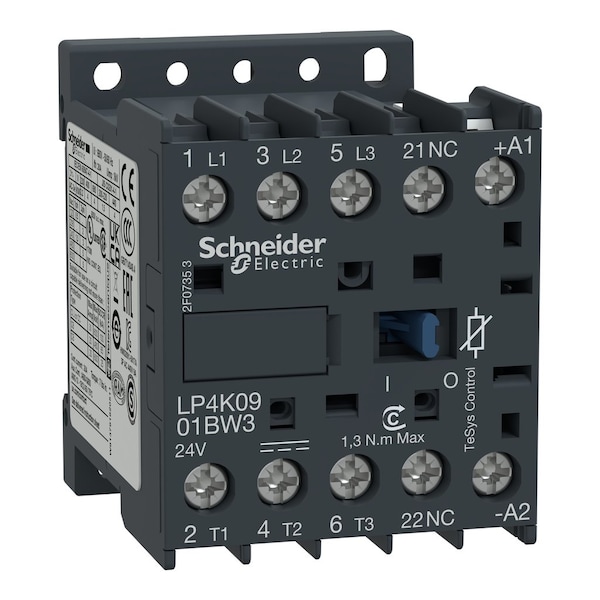

Schneider Electric IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Screw Clamp LP4K0901BW3 - main

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Screw Clamp

  • Mfr # LP4K0901BW3

  • Zoro # G0568867

product price:  $123.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC
Coil Voltage
24V DC
Number of Poles
3
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP4K0901BW3
Zoro #
G0568867
UPC #
785901641728
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Depth
57 mm
Overall Width
45 mm
Overall Height
58 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC
Coil Voltage
24V DC
Number of Poles
3
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Series
LP4K
Application
Motor Control, Resistive Load
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Operating Speed
3600 cycles per hr
Impedance
3 mOhm
Operating Time
10 to 20 ms (Coil De-Energisation and NO Opening), 30 to 40 ms (Coil Energisation and NO Closing)
Mechanical Durability
30 Mcycles
Fuse Amps
25 A (Power Circuit), 10 A (Signalling Circuit)
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Tightening Torque
0.8 to 1.3 Nm
Net Weight
0.235 kg
Control Circuit Voltage Limits
Operational: 0.7 to 1.30 Uc (at 50°C), Drop-Out: 0.1 to 0.7 Uc (at 50°C)
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Impulse Withstand Voltage
8 kV
Overvoltage Category
CAT III
Switching Current
5 mA (Signalling Circuit)
Rated Insulation Volts
600/690V
Rated Making Capacity
110 A
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Full Load Current - Resistive
20 A
Full Load Current - Inductive
9:00 AM
Maximum Voltage Rating
690V AC
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
Mounting Style
Plate, Rail

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole switching device with 1NC auxiliary contact and a 24 V DC coil. It is designed to control motor and resistive-load power circuits and uses screw clamp terminals. The unit is part of the LP4K series and is rated for operation within the specified voltage ranges. It has dimensions of 58 mm (height) by 45 mm (width) by 57 mm (depth) and a net weight of 0.235 kg, and it mounts on plate or rail.

Item: IEC Magnetic Contactor (3-Pole, 1NC) with 24 V DC coil

  • Auxiliary contact: 1NC
  • Terminal connection: Screw Clamp
  • Rated voltage: 690 V AC
  • Rated making capacity: 110 A
  • Rated breaking capacity: 110 A @ 415–440 V, 230–380/400 V; 80 A @ 500 V; 70 A @ 660–690 V
  • Full load amps (inductive): 9 A
  • Full load current (inductive): 9 A
  • Full load current (resistive): 20 A
  • Thermal amperage: 20 A (Power Circuit), 10 A (Signalling Circuit)
  • Impedance: 3 mΩ
  • Impulse withstand voltage: 8 kV
  • Insulation resistance: Greater than 10 MΩ (Signalling Circuit)
  • Fire rating: UL 94 V1, NF F 16-101, NF F 16-102
  • Height x Width x Depth: 58 mm × 45 mm × 57 mm
  • Net weight: 0.235 kg
  • Mounting: Plate, Rail
  • Series: LP4K
  • Standards: EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
  • Operating time: 10–20 ms (Coil De-energisation and NO Opening), 30–40 ms (Coil Energisation and NO Closing)
  • Switching current: 5 mA (Signalling Circuit)
  • Switching voltage: 17 V (Signalling Circuit)
  • Overvoltage category: CAT III
  • Series/Model designation: LP4K
