Item

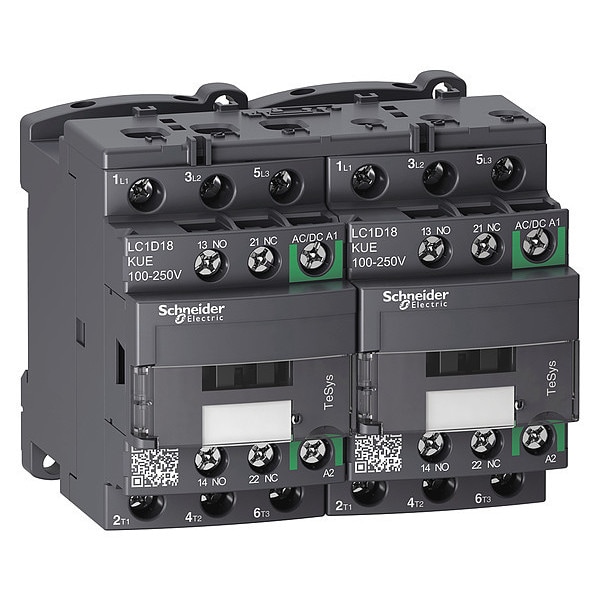

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
15 hp
Frame / Series / Class / Code
TeSys
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Electrical Durability
2.2 Mcycles (15 A, AC-3, Less than 440 V); 0.9 Mcycles (32 A, AC-1, Less than 440 V)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Operating Speed
3600 cycles per hr
Rated Short-Time Withstand Current
40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Mechanical Durability
15 Mcycles
Application
Motor Control, Resistive Load
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Switching Current
5 mA (Signalling Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Max. Operating Watts
4 kW (at 220 to 230V AC 50 Hz), 7.5 kW (at 380 to 400V AC 50 Hz), 9 kW (at 415V AC 50 Hz), 9 kW (at 440V AC 50 Hz), 10 kW (at 500V AC 50 Hz), 10 kW (at 660 to 690V AC 50 Hz)
Fuse Amps
10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Rated Breaking Capacity
300 A @ 440V
Environmental Attributes
Mercury Free, Pollution Degree 3
Includes Protective Cover
Yes
Rated Insulation Volts
690V
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Switching Voltage
17 V (Signalling Circuit)
Overvoltage Category
CAT III
Impulse Withstand Voltage
6 kV
Signalling Circuit Frequency
25 to 400 Hz
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Horsepower @ Three Phase - 208V AC
5 hp
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Three Phase - 600V AC
15 hp
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
2,200,000, 900,000
Horsepower @ Single Phase - 120V AC
1 hp
Full Load Current - Inductive
18 A
Resistance Properties
Fire Resistant, Insulation Resistant
Number of Normally Open Main Contacts
3
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 240V AC
5 hp
Minimum Operating Temperature
-40 Degrees F
Maximum Voltage Rating
690V AC
Embedded Surge Suppressor
No
Mechanical Operating Durability
15,000,000
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 480V AC
10 hp
NEMA Enclosure Rating
No Enclosure
Full Load Current - Resistive
32 A
Conventional Free Air Thermal Current
32 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
