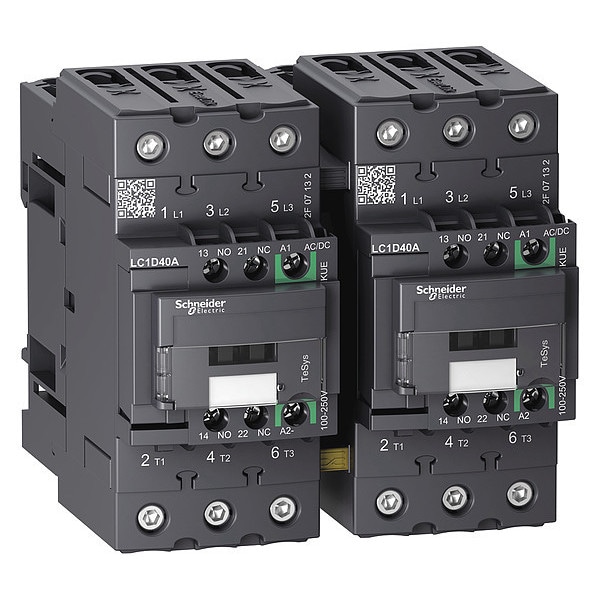

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D40AKUE

  • Zoro # G6035397

product price:  $411.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
40 A
Full Load Amps-Resistive
60 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC2D40AKUE
Zoro #
G6035397
UPC #
03606480988103
Country of Origin
France

Dimensions

Overall Height
4.8 in
Overall Width
4.69 in
Overall Depth
4.72 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
40 A
Full Load Amps-Resistive
60 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 3 Phase - 575V
30 hp
Reversing
Yes
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
Series
TeSys Deca
IP Rating
IP20
Mechanical Operating Durability
6,000,000
Horsepower @ Single Phase - 120V AC
3 hp
Horsepower @ Three Phase - 240V AC
10 hp
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 208V AC
10 hp
Full Load Current - Resistive
60 A
Mounting Style
DIN Rail, Plate
Full Load Current - Inductive
40 A
Electrical Operating Durability
2,000,000, 700,000
NEMA Enclosure Rating
No Enclosure
Number of Normally Open Main Contacts
3
Maximum Voltage Rating
690V AC
Maximum Operating Temperature
140 Degrees F
Horsepower @ Single Phase - 240V AC
5 hp
Contactor Style
IEC
Horsepower @ Three Phase - 480V AC
30 hp
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
30 hp
Minimum Operating Temperature
-40 Degrees F
Includes Auxiliary Contacts
Yes
Resistance Properties
Fire Resistant, Insulation Resistant
Electrical Durability
2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V)
Hold VA
1.8 VA
Mechanical Durability
6 Mcycles
Fire Rating
UL 94 V1
Rated Insulation Volts
690V
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Includes Protective Cover
Yes
Switching Current
5 mA (Signalling Circuit)
Signalling Circuit Frequency
25 to 400 Hz
Impulse Withstand Voltage
6 kV
Fuse Amps
10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Inrush VA
18 VA
Non-Overlap Time
1.5 ms
Impedance
1.5 mOhm
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Rated Breaking Capacity
800 A @ 440V
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Environmental Attributes
Mercury Free, Pollution Degree 3
Operating Speed
3600 cycles per hr
Switching Voltage
17 V (Signalling Circuit)
Overvoltage Category
CAT III
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit)
Max. Operating Watts
11 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 22 kW (at 415V AC 50 Hz), 22 kW (at 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz)
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
Application
Motor Control, Resistive Load
Watts Loss
1.2W
Net Weight
2.154 kg
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole reversing device (1NC/1NO auxiliary contacts). It operates from a coil voltage of 100–250 V AC/DC and uses screw clamp terminals for the control circuit, with EverLink BTR connectors for the power circuit. Part of the TeSys Deca family, it is intended for DIN rail or plate mounting. Rated for operation within the specified voltage and frequency ranges.

Key features

  • Poles and contacts: 3 main contacts (3 NO); auxiliary contacts: 2 total (1NO/1NC)
  • Coil voltage: 100–250 V AC/DC
  • Reversing: Yes
  • Auxiliary contact configuration: 1NO/1NC
  • Mounting and enclosure: DIN Rail, Plate; IP20; No Enclosure
  • Connections: Control Circuit—Screw Clamp Terminals; Power Circuit—EverLink BTR Screw Connectors
  • Rated voltage/frequency: 690V AC; 50/60 Hz
  • Load ratings: 60 A resistive; 40 A inductive
  • Durability: Electrical 2,000,000 cycles; Mechanical 6 Mcycles
  • Weight: 2.154 kg
  • Series/standards: TeSys Deca; UL Listed; EN/IEC 60947-4-1; EN/IEC 60947-5-1
