- Item

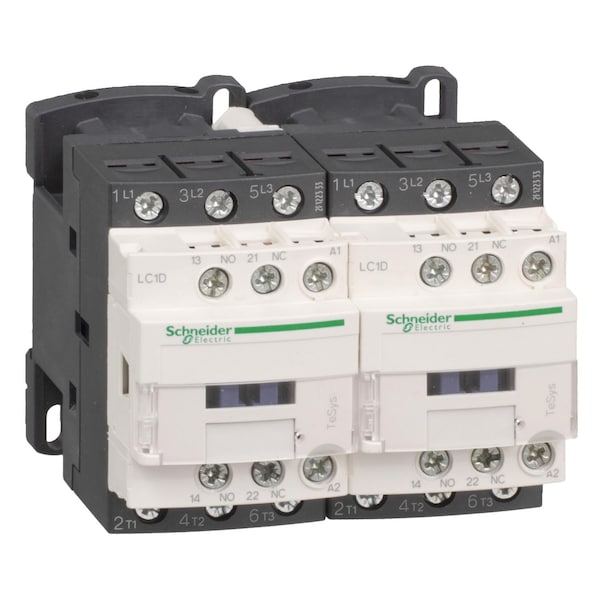

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 110V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 12 A
- Full Load Amps-Resistive
- 25 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30
- HP @ 3 Phase - 575V
- 10 hp
- Series
- LC2D
- Features
- Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
- Application
- Motor Control, Resistive Load
- Impulse Withstand Voltage
- 6 kV
- Watts Loss
- 2 to 3W
- Rated Making Capacity
- 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Impedance
- 2.5 mOhm
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Operating Speed
- 3600 cycles per hr
- Operating Time
- 12 to 22 ms (Closing), 4 to 19 ms (Opening)
- Fuse Amps
- 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
- Non-Overlap Time
- 1.5 ms
- IP Rating
- IP20
- Rated Insulation Volts
- 600/690V
- Max. Operating Watts
- 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Switching Voltage
- 17 V (Signalling Circuit)
- Tightening Torque
- 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
- Mechanical Durability
- 15 Mcycles
- Includes Protective Cover
- Yes
- Rated Short-Time Withstand Current
- 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Electrical Durability
- 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V)
- Hold VA
- 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
- Rated Breaking Capacity
- 250 A @ 440V
- Overvoltage Category
- CAT III
- Inrush VA
- 70 VA
- Net Weight
- 0.697 kg
- Fire Rating
- UL 94 V1
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Switching Current
- 5 mA (Signalling Circuit)
- Ambient Air Temperature For Storage
- -76 to 176°F (-60 to 80°C)
- Inrush Power in VA
- 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
- Contactor Application
- Resistive load; Motor control
- Rated Operational Current
- 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Heat Dissipation
- 2 to 3 W 50/60 Hz
- Mechanical Robustness
- Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms
- Protective Treatment
- TH IEC 60068-2-30
- Control Circuit Voltage
- 110 V AC 50/60 Hz
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Control Circuit Type
- AC 50/60 Hz
- Device Presentation
- Preassembled with reversing power busbar
- Utilisation Category
- AC-3; AC-1; AC-3e
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Interlocking Type
- Mechanical
- Front Cover
- With
- Pollution Degree
- 3
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for signalling circuit; 25 A (at 140°F (60°C)) for power circuit
- Power Dissipation Per Pole
- 1.56 W AC-1; 0.36 W AC-3; 0.36 W AC-3e
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Product Name
- TeSys D; TeSys Deca
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Climatic Withstand
- IACS E10; IEC 60947-1 Annex Q category D
- Full Load Current - Inductive
- 12 A
- Horsepower @ Three Phase - 480V AC
- 7 1/2 hp
- Full Load Current - Resistive
- 25 A
- Horsepower @ Three Phase - 208V AC
- 3 hp
- Horsepower @ Single Phase - 240V AC
- 2 hp
- Horsepower @ Three Phase - 240V AC
- 3 hp
- Mounting Style
- Plate, Rail
- Maximum Operating Temperature
- 140 Degrees F
- Maximum Voltage Rating
- 690V AC, 300V DC
- Pole Contact Composition
- 3 NO
