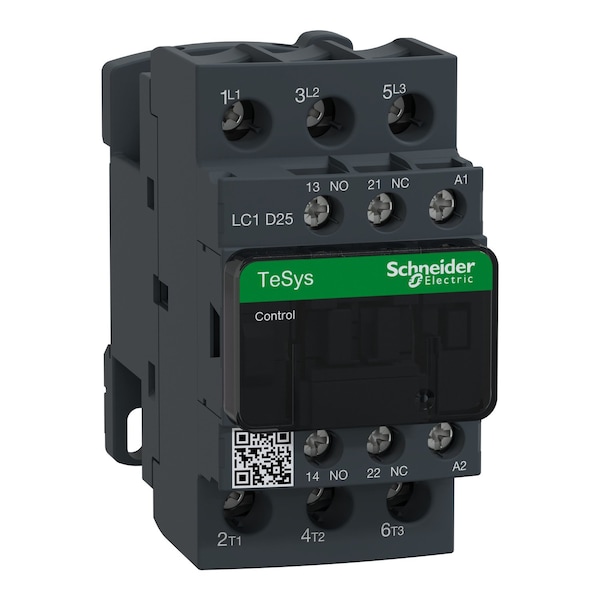

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D25G7

  • Zoro # G0464597

product price:
$
168.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
40 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D25G7
Zoro #
G0464597
UPC #
785901207153
Country of Origin
Indonesia
Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
40 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Reversing
No
HP @ 3 Phase - 575V
20 hp
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
Series
TeSys Deca
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Net Weight
0.37 kg
Watts Loss
2 to 3W
Fire Rating
UL 94 V1
Rated Insulation Volts
600/690V
Mechanical Durability
15 Mcycles
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
Impulse Withstand Voltage
6 kV
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Inrush VA
70 VA
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Impedance
2 mOhm
Rated Short-Time Withstand Current
240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Includes Protective Cover
Yes
Rated Breaking Capacity
450 A @ 440V
Features
Without Built-In Suppressor Module
Application
Motor Control, Resistive Load
Max. Operating Watts
5.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 11 kW (at 380 to 400V AC 50/60 Hz AC-3), 11 kW (at 415 to 440V AC 50/60 Hz AC-3), 15 kW (at 500V AC 50/60 Hz AC-3), 15 kW (at 660 to 690V AC 50/60 Hz AC-3), 5.5 kW (at 400V AC 50/60 Hz AC-4), 5.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 11 kW (at 380 to 400V AC 50/60 Hz AC-3e), 11 kW (at 415 to 440V AC 50/60 Hz AC-3e), 15 kW (at 500V AC 50/60 Hz AC-3e), 15 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Electrical Durability
1.65 Mcycles (25 A, AC-3, Less than 440 V); 1.4 Mcycles (40 A, AC-1, Less than 440 V); 1.65 Mcycles (25 A, AC-3e, Less than 440 V)
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Non-Overlap Time
1.5 ms
Signalling Circuit Frequency
25 to 400 Hz
Operating Speed
3600 cycles per hr
Switching Voltage
17 V (Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Overvoltage Category
CAT III
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)
IP Rating
IP20
Full Load Current - Resistive
40 A
Frequency
50/60 Hz
NEMA Enclosure Rating
No Enclosure
Maximum Voltage Rating
690V AC
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Single Phase - 240V AC
3 hp
Full Load Current - Inductive
25 A
Horsepower @ Three Phase - 600V AC
20 hp
Horsepower @ Single Phase - 120V AC
2 hp
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Mechanical Operating Durability
15,000,000
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-40 Degrees F
Embedded Surge Suppressor
No
Electrical Operating Durability
1,400,000, 1,650,000
Mounting Style
DIN Rail, Plate
Phase
Three
Contactor Style
IEC
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 480V AC
15 hp
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for use within IEC-standard control system parameters. Energized by a 120V AC coil, it includes auxiliary contacts (1NO/1NC) and is compatible with screw clamp terminals. It is part of the TeSys Deca family and does not include an enclosure.

Poles: 3; Reversing: Non-Reversing; Main Contacts: 3 normally open

  • Auxiliary Contacts: 2 total (1NO/1NC)
  • Coil Voltage: 120V AC
  • Electrical Connection: Screw Clamp Terminals
  • Frame / Series: TeSys Deca; Contactor Style: IEC
  • Rated Voltage: rated for operation at voltages up to 690V AC and 300V DC within specified conditions
  • IP Rating / Enclosure: IP20; does not include an enclosure; suitable for installation according to applicable standards
  • Mounting: DIN Rail, Plate
  • Frequency: 50/60 Hz
  • Full Load Amps: rated for continuous operation at the specified current levels under normal conditions
  • Protective Cover: Yes; Embedded Surge Suppressor: No
  • Net Weight: 0.37 kg
  • Dimensions: Depth 3.62 in; Height 3.35 in; Width 1.77 in
  • Operating Time: typical switching times based on testing, but actual performance may vary depending on application conditions
  • Mechanical Durability: 15 Mcycles
  • Standards: conforms to relevant standards including EN and UL certifications as applicable
  • Environmental: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
  • Other electrical specs: Switching Current 5 mA (Signalling Circuit); Switching Voltage 17 V (Signalling Circuit)
