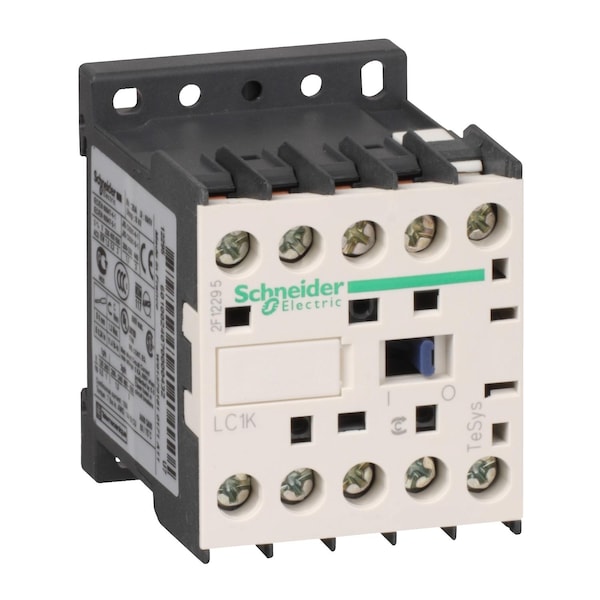

IEC Magnetic Contactor, 1NC, 120V AC, 3 P, Screw Clamp

  • Mfr # LC1K0901G7

  • Zoro # G0849409

product price:  $85.39
/ea

Key Features

Auxiliary Contact Form
1NC
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1K0901G7
Zoro #
G0849409
UPC #
785901666813
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Width
45 mm
Overall Depth
57 mm
Overall Height
58 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016
Series
LC1K, TeSys
Application
Motor Control, Resistive Load
Net Weight
0.18 kg
Mechanical Durability
10 Mcycles
Switching Current
5 mA (Signalling Circuit)
Hold VA
4.5 VA
Overvoltage Category
CAT III
Fuse Amps
25 A (Power Circuit), 10 A (Signalling Circuit)
Electrical Durability
0.18 Mcycles (20 A, AC-1, Less than 440 V); 1.3 Mcycles (9 A, AC-3, Less than 440 V); 1.3 Mcycles (9 A, AC-3e, Less than 440 V)
Rated Making Capacity
110 A
Shock Resistance
10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)
Inrush VA
30 VA
Signalling Circuit Frequency
Less Than 400 Hz
Control Circuit Voltage Limits
Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C)
Impedance
3 mOhm
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50/60 Hz AC-3), 4 kW 380 to (at 415V AC 50/60 Hz AC-3), 4 kW (at 440V AC 50/60 Hz AC-3), 4 kW (at 480V AC 50/60 Hz AC-3), 4 kW (at 500 to 600V AC 50/60 Hz AC-3), 4 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3e), 4 kW (at 380 to 415V AC 50/60 Hz AC-3e), 4 kW (at 440V AC 50/60 Hz AC-3e), 4 kW (at 480V AC 50/60 Hz AC-3e), 4 kW (at 500 to 600V AC 50/60 Hz AC-3e), 4 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Rated Insulation Volts
600/690V
Operating Speed
3600 cycles per hr
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
IP Rating
IP2X
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Tightening Torque
0.8 to 1.3 Nm
Operating Time
10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing)
Switching Voltage
17 V (Signalling Circuit)
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage
8 kV
Rated Short-Time Withstand Current
90 A (at 50°C for 1 s Power Circuit), 85 A (at 50°C for 5 s Power Circuit), 80 A (at 50°C for 10 s Power Circuit), 60 A (at 50°C for 30 s Power Circuit), 45 A (at 50°C for 1 min Power Circuit), 40 A (at 50°C for 3 min Power Circuit), 20 A (at 50°C for 15 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit)
Watts Loss
1.3W
Protective Treatment
TC IEC 60068, TC DIN 50016
Ambient Air Temperature For Storage
-50-80°C
Utilisation Category
AC-3, AC-3e, AC-1, AC-4
Operating Altitude
6561.68 ft (2000 m) without derating
Auxiliary Contacts Type
instantaneous 1 NC
Control Circuit Type
AC 50/60 Hz
[Ui] Rated Insulation Voltage
power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-5-1, signalling circuit 600 V UL 508, power circuit 600 V CSA C22.2 No 14, signalling circuit 600 V CSA C22.2 No 14
[Icw] Rated Short-Time Withstand Current
90 A 50°C - 1 s for power circuit, 85 A 50°C - 5 s for power circuit, 80 A 50°C - 10 s for power circuit, 60 A 50°C - 30 s for power circuit, 45 A 50°C - 1 min for power circuit, 40 A 50°C - 3 min for power circuit, 20 A 50°C - >= 15 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit, 110 A - 100 ms for signalling circuit
Device Application
control
Non Overlap Distance
0.5 mm
Mechanical Robustness
shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Contactor Application
motor control, resistive load
Maximum Operating Rate
3600 cyc/h
Heat Dissipation
1.3-1.3 W
Pole Contact Composition
3 NO
Full Load Current - Resistive
20 A
Full Load Current - Inductive
9 A
Rated Operational Current
9 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 9 A (at <60°C) at <= 440 V AC AC-3e for power circuit, 20 A (at <60°C) at <= 690 V AC AC-1 for power circuit
Inrush Power in VA
30-30 VA (at 20°C)
Mounting Style
Plate, Rail
Control Circuit Voltage
120 V AC 50/60 Hz
Rated Operational Voltage
power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
Maximum Voltage Rating
690V AC

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole (3P) electric switch designed to control power circuits. It features a 120 V AC coil and one auxiliary contact (1NC) with instantaneous operation, wired via screw clamp terminals. Suitable for use with motor control and resistive load applications within specified parameters, it is compatible with IEC utilization categories. It is part of the TeSys LC1K range and uses plate or rail mounting in control panels that require standardized sizing and interchangeability.

Key features:

  • Coil voltage: 120 V AC (50/60 Hz)
  • Poles and contacts: 3 main NO contacts; 1 auxiliary NC contact (instantaneous)
  • Terminals: Screw clamp
  • Mounting: Plate and rail; mounts on plate and on rail
  • Dimensions and weight: 45 mm wide; 58 mm high; 57 mm deep; net weight 0.18 kg
  • Protection: IP2X
  • Rated voltages: Power circuit up to 690 V AC; insulation voltages 600/690 V; signalling circuit 690 V; control circuit 120 V AC
  • Rated currents: 9 A (AC-3, power circuit, <= 440 V); 20 A (AC-1, power circuit, <= 690 V); full-load current 9 A inductive and 20 A resistive
  • Fuse ratings: 25 A (power circuit); 10 A (signalling circuit)
  • Inrush and hold power: 30 VA inrush; 4.5 VA hold
  • Electrical characteristics: impedance 3 mΩ; impulse withstand 8 kV
  • Switching and timing: operating time 10–20 ms for energisation (NO close) and de-energisation (NO open)
  • Durability and speed: mechanical durability 10 Mcycles; operating speed 3600 cyc/h
  • Series/range and standards: LC1K; TeSys range; standards include EN/IEC 60947-4-1, UL 60947-4-1, CE, and others listed
  • Other: rated making capacity 110 A; rated short-time withstand current up to 90 A (power circuit) and 110 A (signalling circuit) for specified durations; range and contact composition indicate 3 NO main contacts on 3 poles.
