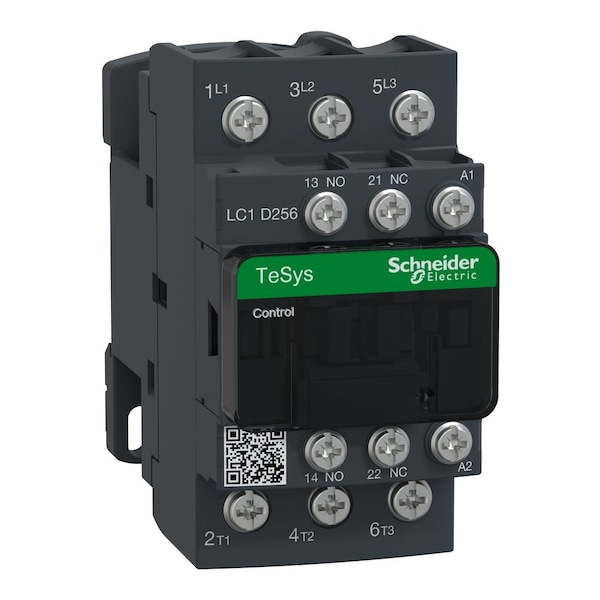

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw LC1D256G7 - main

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw

  • Mfr # LC1D256G7

  • Zoro # G910070442

product price:  $186.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D256G7
Zoro #
G910070442
UPC #
3389110804515
Country of Origin
France

Dimensions

Overall Width
1.77 in
Overall Height
3.35 in
Overall Depth
3.62 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
Series
TeSys Deca
IP Rating
IP20
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 480V AC
15 hp
Mechanical Operating Durability
15,000,000
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Three Phase - 600V AC
20 hp
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Embedded Surge Suppressor
No
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Single Phase - 120V AC
2 hp
Full Load Current - Resistive
200 A
Electrical Operating Durability
1,400,000 (AC-1), 1,650,000 (AC-3), 1,650,000 (AC-3e)
Maximum Voltage Rating
690V AC
Mounting Style
DIN Rail, Plate
Contactor Style
IEC
Frequency
50/60 Hz
Full Load Current - Inductive
150 A
Phase
Three

Description

The item is an IEC Magnetic Contactor from Schneider Electric. It is a three-pole, non-reversing, electrically operated switch with a 120V AC coil and auxiliary contacts configured as 1NC/1NO. The device employs an electromagnetic coil rated for operation within specified voltage ranges and is part of the TeSys Deca family, with screw-terminal mounting.

Type: IEC Magnetic Contactor; Item: IEC Magnetic Contactor

  • Poles/Phase: 3 poles; Phase: Three
  • Coil Voltage: 120V AC
  • Reversing: Non-Reversing
  • Auxiliary Contacts: 2 total; Form: 1NC/1NO
  • Terminal Connection Type: Screw
  • Maximum Voltage Rating: 690V AC
  • IP Rating: IP20
  • Mechanical Durability: Mechanical durability is rated based on standard testing procedures
  • Electrical Operating Durability: Electrical operating durability ratings are provided according to applicable standards and testing conditions
  • Full Load Amps/Current: Rated current values are provided based on standardized testing conditions and should be used within specified parameters
  • HP Ratings (by voltage/phases): 120V 2 hp (single phase); 240V 3 hp (single phase); 208V 7 1/2 hp; 240V 7 1/2 hp; 480V 15 hp; 600V 20 hp
  • Frequency: 50/60 Hz
  • Mounting Style: DIN Rail, Plate
  • Dimensions (W x H x D): 1.77 in x 3.35 in x 3.62 in
  • Series: TeSys Deca
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • Resistance Properties: Resistance properties indicate compliance with relevant standards but do not guarantee fire safety or insulation integrity in all circumstances
  • Includes Auxiliary Contacts: Yes

    • Restrictions
