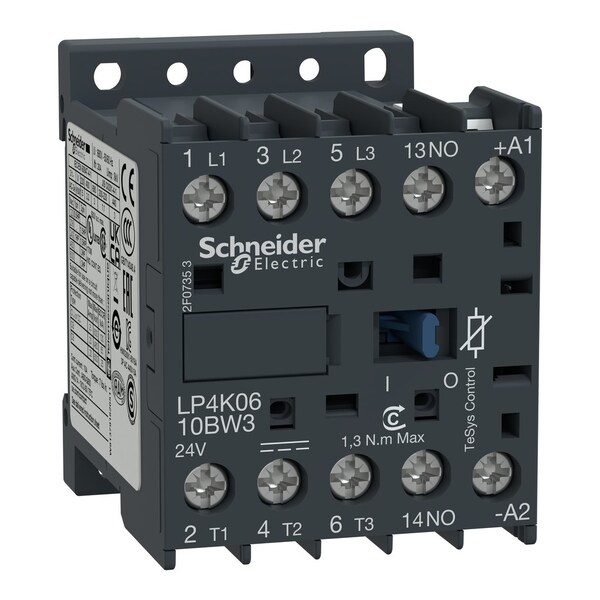

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Screw Clamp

  • Mfr # LP4K1210BW3

  • Zoro # G0849488

product price:
$
130.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
20 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LP4K1210BW3
Zoro #
G0849488
UPC #
785901791195
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Height
58 mm
Overall Width
45 mm
Overall Depth
57 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NO
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
20 A
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Series
LP4K
Application
Motor Control, Resistive Load
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Switching Voltage
17 V (Signalling Circuit)
Impedance
3 mOhm
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Tightening Torque
0.8 to 1.3 Nm
Operating Time
10 to 20 ms (Coil De-Energisation and NO Opening), 30 to 40 ms (Coil Energisation and NO Closing)
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Impulse Withstand Voltage
8 kV
Operating Speed
3600 cycles per hr
Rated Breaking Capacity
110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V
Rated Making Capacity
110 A (AC Signalling Circuit), 144 A (AC Power Circuit)
Control Circuit Voltage Limits
Operational: 0.7 to 1.30 Uc (at 50°C), Drop-Out: 0.1 to 0.7 Uc (at 50°C)
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Overvoltage Category
CAT III
Rated Insulation Volts
600/690V
Mechanical Durability
30 Mcycles
Net Weight
0.235 kg
Fuse Amps
25 A (Power Circuit), 10 A (Signalling Circuit)
Full Load Current - Inductive
12 A
Full Load Current - Resistive
20 A
Maximum Voltage Rating
690V AC
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
Mounting Style
Plate, Rail

Description

The item is an IEC Magnetic Contactor (3 poles) with a 24 V DC coil, intended for switching power circuits in motor control and resistive-load applications. It uses a screw-clamp terminal and offers one normally open auxiliary contact, with mounting options for plate or rail. The unit is part of the LP4K series and is rated for operation within the specified voltage ranges.

Poles: 3

  • Coil voltage: 24 V DC
  • Auxiliary contact form: 1 NO
  • Terminal connection: Screw Clamp
  • Mounting: Plate, Rail
  • Rated voltage: 690 V AC
  • Full-load current (resistive): 20 A
  • Full-load current (inductive): 12 A
  • Making capacity: 110 A (AC Signalling), 144 A (AC Power)
  • Impedance: 3 mΩ
  • Impulse withstand voltage: 8 kV
  • Insulation resistance (signalling circuit): Greater Than 10 MΩ
  • Insulation voltage: 600/690 V
  • Fire rating: UL 94 V1; NF F 16-101; NF F 16-102
  • Overvoltage category: CAT III
  • Series: LP4K
  • Standards: EN/IEC 60947-4-1; GB/T 14048.4; UL 60947-4-1; CSA C22.2 No 60947-4-1; JIS C8201-4-1; CB Scheme; CCC; UL; CSA; EAC; CE; UKCA
  • Mechanical durability: 30 Mcycles
  • Dimensions: Width 45 mm; Height 58 mm; Depth 57 mm
  • Net weight: 0.235 kg
  • Fuses: 25 A (Power Circuit); 10 A (Signalling Circuit)
  • Working height: 6561.68 ft
