- Item

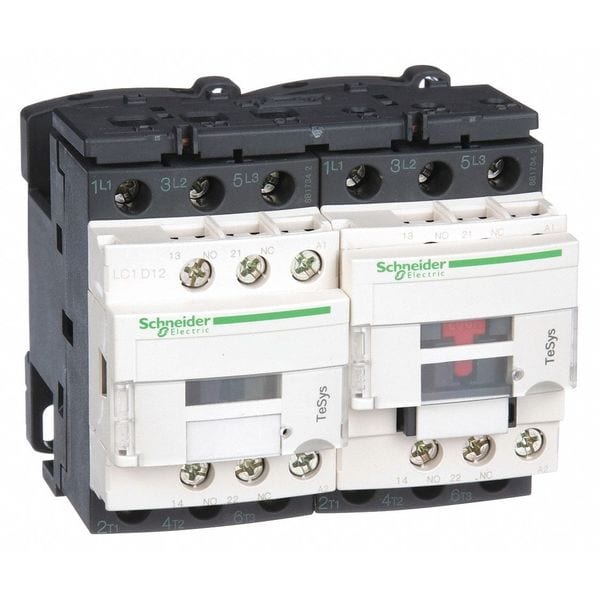

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 12 A
- Full Load Amps-Resistive
- 25 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
- Enclosure NEMA Rating
- No Enclosure
- HP @ 3 Phase - 575V
- 10 hp
- Frame / Series / Class / Code
- TeSys
- Reversing
- Yes
- Series
- TeSys Deca
- Operating Speed
- 3600 cycles per hr
- Watts Loss
- 2 to 3W
- Fuse Amps
- 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
- Impulse Withstand Voltage
- 6 kV
- Switching Current
- 5 mA (Signalling Circuit)
- Application
- Motor Control, Resistive Load
- Includes Protective Cover
- Yes
- Inrush VA
- 70 VA
- Non-Overlap Time
- 1.5 ms
- Hold VA
- 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
- Max. Operating Watts
- 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Impedance
- 2.5 mOhm
- Mechanical Durability
- 15 Mcycles
- Overvoltage Category
- CAT III
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Tightening Torque
- 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
- Electrical Durability
- 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V)
- Switching Voltage
- 17 V (Signalling Circuit)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Rated Insulation Volts
- 600/690V
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Fire Rating
- UL 94 V1
- Rated Short-Time Withstand Current
- 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Operating Time
- 12 to 22 ms (Closing), 4 to 19 ms (Opening)
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
- Features
- Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
- IP Rating
- IP20
- Rated Breaking Capacity
- 250 A @ 440V
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Rated Making Capacity
- 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Net Weight
- 0.697 kg
- Maximum Voltage Rating
- 690V AC
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Electrical Operating Durability
- 2,000,000, 800,000
- Contactor Style
- IEC
- Horsepower @ Three Phase - 480V AC
- 7 1/2 hp
- Horsepower @ Three Phase - 240V AC
- 3 hp
- Horsepower @ Single Phase - 240V AC
- 2 hp
- Horsepower @ Three Phase - 208V AC
- 3 hp
- Maximum Operating Temperature
- 140 Degrees F
- NEMA Enclosure Rating
- No Enclosure
- Full Load Current - Resistive
- 25 A
- Embedded Surge Suppressor
- No
- Horsepower @ Single Phase - 120V AC
- 1 hp
- Number of Normally Open Main Contacts
- 3
- Full Load Current - Inductive
- 12 A
- Minimum Operating Temperature
- -40 Degrees F
- Includes Auxiliary Contacts
- Yes
- Mechanical Operating Durability
- 15,000,000
- Mounting Style
- DIN Rail, Plate
- Horsepower @ Three Phase - 600V AC
- 10 hp
- Frequency
- 50/60 Hz
- Power Dissipation Per Pole
- 1.56 W AC-1; 0.36 W AC-3; 0.36 W AC-3e
- Rated Operational Current
- 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Control Circuit Voltage
- 120 V AC 50/60 Hz
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Device Presentation
- Preassembled with reversing power busbar
- Pollution Degree
- 3
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Mechanical Robustness
- Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms
- Front Cover
- With
- Protective Treatment
- TH IEC 60068-2-30
- Contactor Application
- Resistive load; Motor control
- Ambient Air Temperature For Storage
- -76 to 176°F (-60 to 80°C)
- Climatic Withstand
- IACS E10; IEC 60947-1 Annex Q category D
- Inrush Power in VA
- 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for signalling circuit; 25 A (at 140°F (60°C)) for power circuit
- Control Circuit Type
- AC 50/60 Hz
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Interlocking Type
- Mechanical
- Utilisation Category
- AC-3; AC-1; AC-3e
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Heat Dissipation
- 2 to 3 W 50/60 Hz
- Product Name
- TeSys Deca; TeSys Deca
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Pole Contact Composition
- 3 NO
