- Item

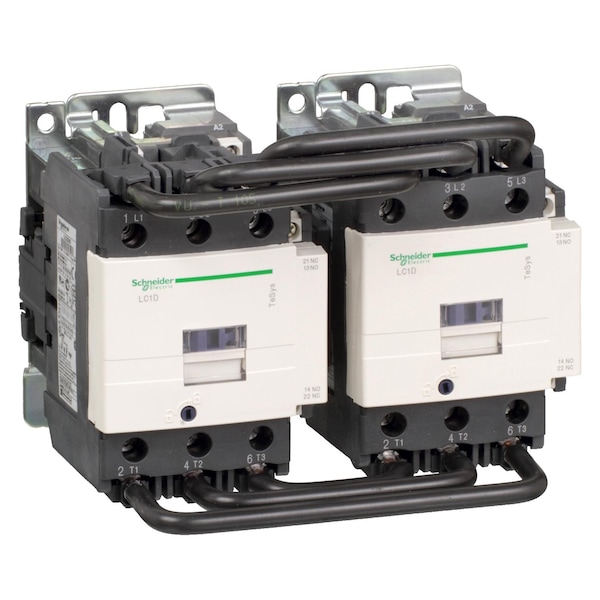

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 80 A
- Full Load Amps-Resistive
- 125 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL, CSA, RINA, GOST, CCC, DNV, LROS, GL, BV, UKCA, TH IEC 60068-2-30
- HP @ 3 Phase - 575V
- 60 hp
- Series
- LC2D, TeSys
- Application
- Motor Control, Resistive Load
- Features
- Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
- Max. Operating Watts
- 22 kW (at 220 to 230V AC 50 Hz), 37 kW (at 380 to 400V AC 50 Hz), 45 kW (at 415 to 440V AC 50 Hz), 55 kW (at 500V AC 50 Hz), 45 kW (at 660 to 690V AC 50 Hz)
- Rated Short-Time Withstand Current
- 135 A (at 40 Degrees C for 10 min Power Circuit), 320 A (at 40 Degrees C for 1 min Power Circuit), 640 A (at 40??C for 10 s Power Circuit), 990 A (at 40 Degrees C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- IP Rating
- IP20
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Tightening Torque
- 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
- Overvoltage Category
- CAT III
- Non-Overlap Time
- 1.5 ms
- Impedance
- 0.8 mOhm
- Fire Rating
- UL 94 V1
- Operating Speed
- 3600 cycles per hr
- Includes Protective Cover
- Yes
- Net Weight
- 3.2 kg
- Hold VA
- 26 VA
- Mechanical Durability
- 4 Mcycles
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Operating Time
- 20 to 35 ms (Closing), 6 to 20 ms (Opening)
- Rated Insulation Volts
- 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
- Watts Loss
- 6 to 10W
- Fuse Amps
- 10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)
- Shock Resistance
- 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)
- Switching Current
- 5 mA (Signalling Circuit)
- Rated Breaking Capacity
- 1100 A @ 440V
- Impulse Withstand Voltage
- 8 kV
- Switching Voltage
- 17 V (Signalling Circuit)
- Inrush VA
- 245 VA
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit)
- Electrical Durability
- 0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V)
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (-40 to 55°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 1 to 1.1 Uc (at 55 to 70°C 50/60 Hz)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Vibration Resistance
- 3 G (Contactor Closed), 2 G (Contactor Open)
- Mechanical Robustness
- Vibrations contactor open2 Gn, 5 to 300 Hz; Shocks contactor open8 Gn for 11 ms; Vibrations contactor closed3 Gn, 5 to 300 Hz; Shocks contactor closed10 Gn for 11 ms
- Device Presentation
- Preassembled with reversing power busbar
- Inrush Power in VA
- 245 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 245 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Rated Operational Current
125 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 55 A (at Less than 140°F (60°C)) at Less than or Equal to 400 V AC AC-4 for power circuit
- Control Circuit Type
- AC 50/60 Hz
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Power Dissipation Per Pole
- 12.5 W AC-1; 5.1 W AC-3; 5.1 W AC-3e
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Contactor Application
- Resistive load; Motor control
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Front Cover
- With
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Utilisation Category
- AC-1; AC-3; AC-3e; AC-4
- Heat Dissipation
- 6 to 10 W 50/60 Hz
- Protective Treatment
- TH IEC 60068-2-30
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for signalling circuit; 125 A (at 140°F (60°C)) for power circuit
- Ambient Air Temperature For Storage
- -76 to 176°F (-60 to 80°C)
- Control Circuit Voltage
- 120 V AC 50/60 Hz
- Interlocking Type
- Mechanical
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Climatic Withstand
- IACS E10
- Product Name
- TeSys Deca
- Pollution Degree
- 3
- [Icw] Rated Short-Time Withstand Current
- 135 A 40°C - 10 min for power circuit, 320 A 40°C - 1 min for power circuit, 640 A 40°C - 10 s for power circuit, 990 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 1000 V IEC 60947-4-1
- Horsepower @ Three Phase - 240V AC
- 25 hp
- Horsepower @ Three Phase - 480V AC
- 60 hp
- Full Load Current - Inductive
- 80 A
- Horsepower @ Three Phase - 208V AC
- 20 hp
- Full Load Current - Resistive
- 125 A
- Horsepower @ Single Phase - 240V AC
- 15 hp
- Maximum Operating Temperature
- 140 Degrees F
- Maximum Voltage Rating
- 690V AC, 300V DC
- Mounting Style
- Plate, Rail
- Pole Contact Composition
- 3 NO
