Shop SCHNEIDER ELECTRIC

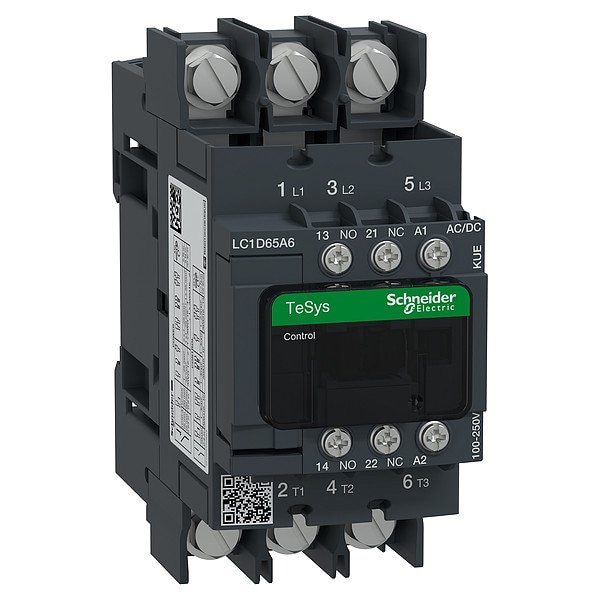

TeSysCTR3P65A AC3NO+NC100-250V ACDC LUGS

  • Mfr # LC1D65A6KUE

  • Zoro # G822823075

product price:
$
459.99
/ea
Free Shipping & Returns

Key Features

Full Load Current - Resistive
Not Rated
Includes Auxiliary Contacts
Yes
Number of Poles
3
Overall Height
4.8 in
Contactor Style
IEC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D65A6KUE
Zoro #
G822823075
UPC #
-
Country of Origin
Multiple
Full Load Current - Resistive
Not Rated
Includes Auxiliary Contacts
Yes
Number of Poles
3
Contactor Style
IEC
Reversing Capability
Non-Reversing
Minimum Operating Temperature
-40 Degrees F
Number of Normally Open Main Contacts
3
Electrical Operating Durability
1,800,000, 500,000
Item
IEC Contactor
Series
Tesys Deca
Embedded Surge Suppressor
Yes
Mechanical Operating Durability
6,000,000
NEMA Enclosure Rating
No Enclosure
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Maximum Voltage Rating
440V
Phase
Three
Full Load Current - Inductive
65 A
Maximum Operating Temperature
140 Degrees F
Frequency
50/60 Hz
Auxiliary Contact Form
1NO/1NC
Terminal Connection Type
Box Lugs
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS (Lloyds Register of Shipping), UKCA, UL 60947-4-1, UL Listed
Coil Voltage
100-250V AC/DC
Number of Auxillary Contacts
2

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 100-250V AC/DC, Number of Poles 3, Full Load Current - Inductive 65 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Three, Maximum Voltage Rating 440V
