  7. IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw

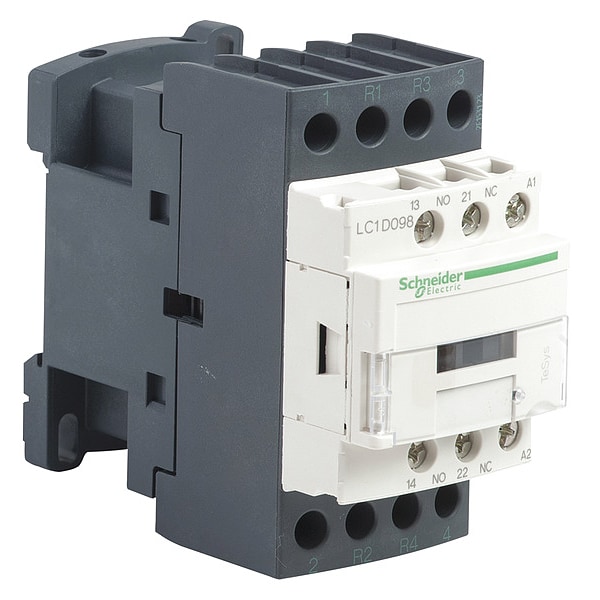

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw LC1D098G7 - main

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw

  • Mfr # LC1D098G7

  • Zoro # G0569515

product price:  $131.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D098G7
Zoro #
G0569515
UPC #
785901610588
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
3.6 in
Overall Width
1.8 in
Overall Height
3.3 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
4
Standards
CB Scheme, CCC, CSA, CSA C22.2 No. 14, CSA C22.2 No. 60947-4-1, EAC, EN 60947-4-1, EN 60947-5-1, IEC 60335-1: Clause 30.2, IEC 60335-2-40: Annex JJ, IEC 60947-4-1, IEC 60947-5-1, Marine, UKCA, UL, UL 60335-2-40: Annex JJ, UL 60947-4-1
Series
TeSys
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Impedance
2.5 mOhm
Operating Speed
3600 cycles per hr
Net Weight
0.365 kg
IP Rating
IP20
Rated Breaking Capacity
250 A @ 440V
Tightening Torque
1.7 Nm
Switching Voltage
17 V (Signalling Circuit)
Application
Resistive Load
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Inrush VA
70 VA
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Mechanical Durability
15 Mcycles
Watts Loss
2 to 3W
Signalling Circuit Frequency
25 to 400 Hz
Includes Protective Cover
Yes
Non-Overlap Time
1.5 ms
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Features
Without Built-In Suppressor Module
Electrical Durability
0.3 Mcycles (20 A, AC-1, Less than 690 V)
Rated Insulation Volts
600/690V
Overvoltage Category
CAT III
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Switching Current
5 mA (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 60°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz)
Rated Short-Time Withstand Current
105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Fire Rating
UL 94 V1
Full Load Current - Resistive
20 A
Full Load Current - Inductive
9:00 AM
Number of Normally Open Main Contacts
2
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Contactor Style
IEC
Mechanical Operating Durability
15,000,000
Phase
Three
Number of Normally Closed Main Contacts
2
Electrical Operating Durability
300000
Embedded Surge Suppressor
No
Frequency
50/60 Hz
Response Time
12 to 22 msec (Closing), 4 to 19 msec (Opening)
Maximum Voltage Rating
250V DC; 690V AC
Mounting Style
DIN Rail, Plate
Resistance Properties
Fire Resistant
Conventional Free Air Thermal Current
20 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)

Description

The IEC Magnetic Contactor is a four-pole, non-reversing control device (IEC style) with a 120 V AC coil and a 1NC/1NO auxiliary contact configuration. Rated for resistive load switching within specified voltage ranges (up to 690 V AC and 250 V DC).

Poles: 4

  • Coil Voltage: 120 V AC
  • Auxiliary Contacts: 4 total (1NC/1NO form)
  • Main Contacts: 2 normally closed, 2 normally open
  • Reversing Capability: Non-Reversing
  • Phase: Three
  • Contactor Style: IEC
  • Application: Resistive Load
  • Maximum Voltage Rating: 690 V AC, 250 V DC
  • Rated Making Capacity: 250 A @ 440 V (Power Circuit); 140 A (AC Signalling Circuit); 250 A (DC Signalling Circuit)
  • Rated Insulation Volts: 600/690 V
  • IP Rating: IP20
  • Frequency: 50/60 Hz
  • Mechanical Durability: 15 Mcycles
  • Electrical Durability (Operating): 300,000 cycles
  • Embedded Surge Suppressor: No
  • Holding VA: 7.5 VA (60 Hz, 20°C); 7 VA (50 Hz, 20°C)
  • Inrush VA: 70 VA
  • Standards: UL; EN 60947-4-1; EN 60947-5-1
  • Standards (additional): UL 60335-2-40: Annex JJ
  • Mounting Style: DIN Rail, Plate
  • Mounts On: Plate, Rail
  • Height: 85 mm
  • Width: 45 mm
  • Depth: 92 mm
  • Net Weight: 0.365 kg
  • Terminal Connection: Screw Clamp Terminals
  • Tightening Torque: 1.7 Nm
  • Non-Overlap Time: 1.5 ms
  • Response Time: 12 to 22 ms (Closing), 4 to 19 ms (Opening)
  • Impulse Withstand Voltage: Meets industry standards for impulse withstand voltage; does not guarantee performance under all conditions.
  • Holding Current/Voltage: Designed to operate within specified current and voltage ratings; does not imply safety or suitability beyond rated parameters.
  • Switching Current: 5 mA (Signalling Circuit) / 17 V (Signalling Circuit)
