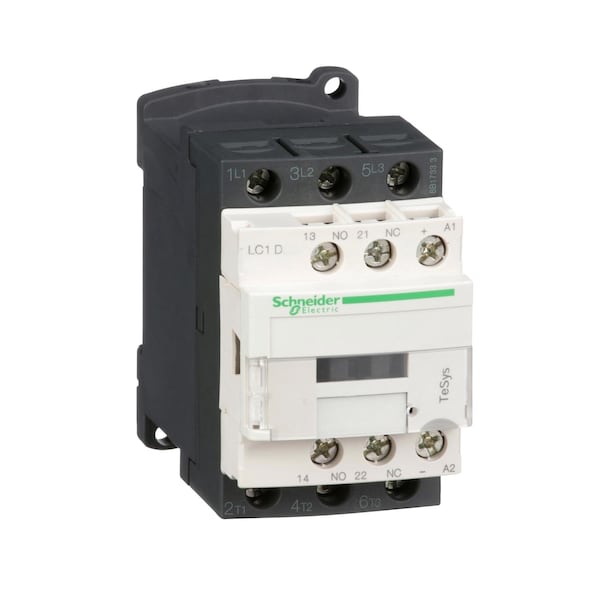

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 12V DC, 3 P, Non-Reversing, Screw Clamp LC1D18JD - main

IEC Magnetic Contactor, 1NC/1NO, 12V DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D18JD

  • Zoro # G0569226

product price:  $186.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
12V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D18JD
Zoro #
G0569226
UPC #
785901207283
Country of Origin
Multiple

Dimensions

Working Height
Up to 9842.52 ft
Overall Height
77 mm
Overall Depth
95 mm
Overall Width
45 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
12V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, RINA, GOST, GL, UL, BV, CSA, LROS, CCC, DNV, UKCA, THIEC 60068-2-30
Series
LC1D
HP @ 3 Phase - 575V
15 hp
Application
Motor Control, Resistive Load
Features
With Integral Suppression Device
Rated Breaking Capacity
300 A @ 440V
IP Rating
IP20
Impulse Withstand Voltage
6 kV
Rated Short-Time Withstand Current
145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit), 40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
Max. Operating Watts
4 kW (at 220 to 230V AC 50/60 Hz AC-3), 7.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 9 kW (at 415 to 440V AC 50/60 Hz AC-3), 10 kW (at 500V AC 50/60 Hz AC-3), 10 kW (at 660 to 690V AC 50/60 Hz AC-3), 4 kW (at 400V AC 50/60 Hz AC-4), 4 kW (at 220 to 230V AC 50/60 Hz AC-3e), 7.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 9 kW (at 415 to 440V AC 50/60 Hz AC-3e), 10 kW (at 500V AC 50/60 Hz AC-3e), 10 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Net Weight
0.49 kg
Operating Speed
3600 cycles per hr
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
Fire Rating
UL 94 V1
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Switching Current
5 mA (Signalling Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Insulation Volts
600/690V
Mechanical Durability
30 Mcycles
Includes Protective Cover
Yes
Overvoltage Category
CAT III
Operating Time
53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)
Impedance
2.5 mOhm
Tightening Torque
1.7 Nm
Fuse Amps
10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Switching Voltage
17 V (Signalling Circuit)
Electrical Durability
1.65 Mcycles (18 A, AC-3, Less than 440 V); 1 Mcycles (32 A, AC-1, Less than 440 V); 1.65 Mcycles (18 A, AC-3e, Less than 440 V)
Non-Overlap Time
1.5 ms
Signalling Circuit Frequency
25 to 400 Hz
Full Load Current - Resistive
32 A
Horsepower @ Three Phase - 480V AC
10 hp
Horsepower @ Three Phase - 240V AC
5 hp
Horsepower @ Three Phase - 208V AC
5 hp
Horsepower @ Single Phase - 240V AC
3 hp
Full Load Current - Inductive
18 A
Maximum Voltage Rating
690V AC, 300V DC
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 32 A (at 60°C Power Circuit)
Mounting Style
Plate, Rail

Description

The item is an IEC Magnetic Contactor from Schneider Electric. It is a 3-pole, non-reversing device with a 12 V DC coil and an auxiliary contact form of 1NC/1NO, mounted with screw clamp terminals. It is rated for switching power circuits within specified parameters for motor control and resistive loads and is compatible with plate or rail mounting according to manufacturer specifications as part of the LC1D series.

Poles: 3; Auxiliary Contacts: 1NC/1NO

  • Coil Voltage: 12 V DC
  • Electrical Connection: Screw Clamp Terminals
  • Mounting: Plate, Rail
  • Reversing Capability: non-reversing design as specified by the manufacturer
  • Depth x Width x Height: 95 mm x 45 mm x 77 mm
  • Net Weight: 0.49 kg
  • IP Rating: IP20
  • Includes Protective Cover: Yes
  • Series: LC1D
  • Rated Voltage: 690V AC, 300V DC
  • Standards: EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, plus others listed
  • Fire Rating: complies with UL 94 V1 flammability rating standards
  • Rated Making Capacity: values under specified test conditions; actual performance may vary based on application conditions
  • Mechanical/Electrical Durability: 30 Mcycles (mechanical) and multiple specified electrical cycles depending on circuit type
  • Maximum Operating Temperatures: maximum operating temperature ratings provided by the manufacturer
