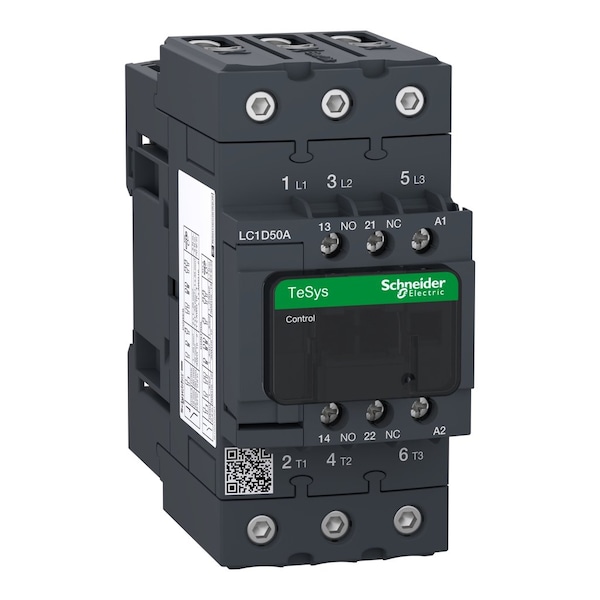

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp LC1D50ALE7 - main

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D50ALE7

  • Zoro # G410070287

product price:  $284.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
208V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D50ALE7
Zoro #
G410070287
UPC #
3389119408684
Country of Origin
France

Dimensions

Overall Height
4.8 in
Overall Width
2.17 in
Overall Depth
4.72 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
208V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
Series
TeSys Deca
IP Rating
IP20
Phase
Three
Full Load Current - Inductive
50 A
Horsepower @ Three Phase - 480V AC
40 hp
Horsepower @ Single Phase - 120V AC
3 hp
Mounting Style
DIN Rail, Plate
Full Load Current - Resistive
200 A
Horsepower @ Three Phase - 208V AC
15 hp
Electrical Operating Durability
1,100,000 (AC-1), 1,450,000 (AC-3), 1,450,000 (AC-3e)
Contactor Style
IEC
Horsepower @ Three Phase - 240V AC
15 hp
Frequency
60 Hz
Horsepower @ Three Phase - 600V AC
40 hp
Mechanical Operating Durability
6,000,000
Maximum Voltage Rating
690V AC
Resistance Properties
Fire Resistant, Insulation Resistant
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Embedded Surge Suppressor
No

Description

Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with coil rated at 208V AC and two auxiliary contacts (1NC/1NO). It uses screw clamp terminals and is rated for switching power circuits for motors, lighting, and other industrial loads within specified parameters. This device is part of the TeSys Deca series and offers IP20 protection.

Key features

  • Auxiliary contacts: 2 total (1NC/1NO)
  • Coil voltage: 208V AC
  • Contactor style: IEC
  • Poles: 3; Phase: Three
  • Reversing capability: Non-Reversing (no implied guarantee of reversibility)
  • Mounting style: DIN Rail, Plate
  • Terminal connection: Screw Clamp
  • Maximum voltage rating: 690V AC
  • Frequency: 60 Hz
  • IP rating: IP20
  • Includes auxiliary contacts: Yes
  • Mechanical operating durability: 6,000,000 cycles (specified as manufacturer’s typical rating)
  • Electrical operating durability: Ratings are provided based on testing conditions; actual performance may vary depending on application.
  • Power ratings: Power ratings are based on standard test conditions; actual operational capacity depends on specific installation parameters.
  • Series: TeSys Deca
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508

    • Restrictions
