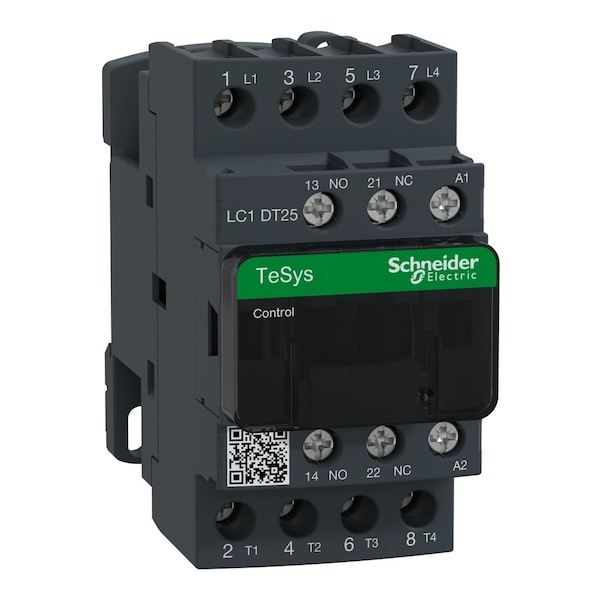

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 208V AC, 4 P, Non-Reversing, Screw Clamp LC1DT25LE7 - main

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1DT25LE7

  • Zoro # G510080872

product price:  $166.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
208V AC
Number of Poles
4
Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
25 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC1DT25LE7
Zoro #
G510080872
UPC #
3389110333954
Country of Origin
Singapore

Dimensions

Overall Depth
3.62 in
Overall Width
1.77 in
Overall Height
3.35 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
208V AC
Number of Poles
4
Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
25 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
Series
TeSys Deca
IP Rating
IP20
Full Load Current - Resistive
25 A
Mounting Style
DIN Rail, Plate
Frequency
50/60 Hz
Resistance Properties
Fire Resistant, Insulation Resistant
Electrical Operating Durability
800,000 (AC-1)
Maximum Voltage Rating
690V AC
Mechanical Operating Durability
15,000,000
Full Load Current - Inductive
25 A
Embedded Surge Suppressor
No
Contactor Style
IEC
Includes Auxiliary Contacts
Yes
Phase
Single

Description

The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts, suitable for controlling motors, lighting, and other compatible loads when used as intended. This non-reversing design, 4-pole model equipped with auxiliary contacts (1 NC / 1 NO) as specified, a 208V AC coil, screw-clamp terminals, and mounting compatible with DIN rail or plate installations as part of the TeSys Deca family.

Coil voltage: 208V AC

  • Contactor style: IEC
  • Poles: 4
  • Auxiliary contacts: 2 (1 NC / 1 NO) as specified
  • Reversing capability: non-reversing design
  • Phase: Single
  • Maximum voltage rating: rated for use at voltages up to 690V AC within specified conditions
  • Frequency: 50/60 Hz
  • Full load current: 25 A (inductive and resistive)
  • IP rating: IP20
  • Mechanical operating durability: mechanical endurance tested to approximately 15 million cycles under standard testing conditions
  • Electrical operating durability: electrical endurance rated at approximately 800,000 cycles under specified test conditions (AC-1 load type)
  • Mounting style: DIN Rail, Plate
  • Terminal connection type: Screw Clamp
  • Series: TeSys Deca
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • Dimensions (approx.): Depth 3.62 in, Height 3.35 in, Width 1.77 in
