  7. IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp

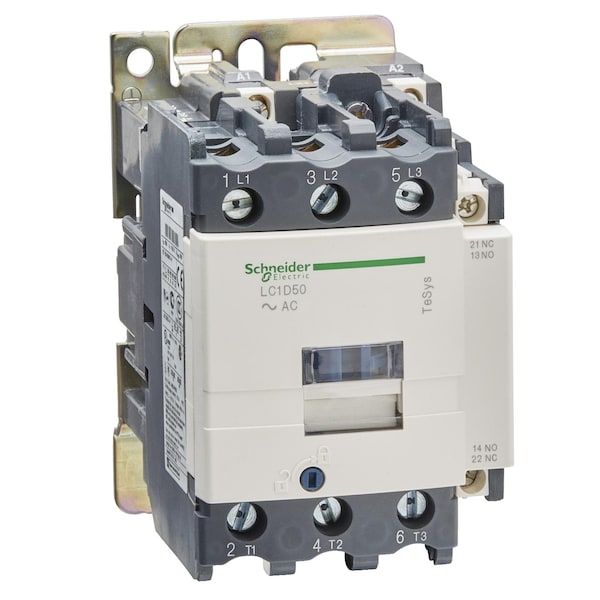

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp LC1D50M7 - main

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D50M7

  • Zoro # G0850267

product price:  $376.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
220V AC
Number of Poles
3
Full Load Amps-Inductive
50 A
Full Load Amps-Resistive
80 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC1D50M7
Zoro #
G0850267
UPC #
785901207634
Country of Origin
Czechia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
119 mm
Overall Width
75 mm
Overall Height
127 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
220V AC
Number of Poles
3
Full Load Amps-Inductive
50 A
Full Load Amps-Resistive
80 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
UL 508, IEC 60947-5-1, EN 60947-4-1, IEC 60947-4-1, EN 60947-5-1, CSA C22.2 No 14, UL, BV, GL, RINA, CSA, LROS, GOST, DNV, CCC, UKCA
Series
LC1D
HP @ 3 Phase - 575V
40 hp
Features
Without Built-In Bi-Directional Peak Limiting Diode Suppressor
Application
Motor Control, Resistive Load
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Impulse Withstand Voltage
8 kV
Rated Breaking Capacity
900 A @ 440V
Fire Rating
UL 94 V1
IP Rating
IP2X
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Insulation Resistance Range
Greater Than 10 Mohms (Control Circuit)
Net Weight
1.4 kg
Switching Current
5 mA (Control Circuit)
Rated Insulation Volts
600/690V
Operating Speed
3600 cycles per hr
Hold VA
13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
Includes Protective Cover
Yes
Mechanical Durability
6 Mcycles
Operating Time
4 to 19 ms (Opening), 12 to 26 ms (Closing)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free
Watts Loss
4 to 5W
Fuse Amps
10 A (Control Circuit), 100 A (Type 1 and 2 Power Circuit)
Tightening Torque
1.7 Nm (Control Circuit), 5 Nm (Power Circuit)
Rated Making Capacity
900 A @ 440V (Power Circuit), 140 A (AC Control Circuit)
Inrush VA
140 VA (at 20°C), 160 VA (at 20°C)
Max. Operating Watts
22 kW (at 380 to 400V AC 50 Hz AC-3), 25 kW (at 415V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3), 30 kW (at 500V AC 50 Hz AC-3), 33 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 220 to 230V AC 50 Hz AC-3), 11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 1000V AC 50 Hz AC-3), 22 kW (at 380 to 400V AC 50 Hz AC-3e), 25 kW (at 415V AC 50 Hz AC-3e), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 500V AC 50 Hz AC-3e), 33 kW (at 660 to 690V AC 50 Hz AC-3e), 15 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 1000V AC 50 Hz AC-3e)
Non-Overlap Time
1.5 ms
Overvoltage Category
CAT III
Switching Voltage
17 V (Control Circuit)
Full Load Current - Inductive
50 A
Horsepower @ Three Phase - 480V AC
40 hp
Full Load Current - Resistive
80 A
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Horsepower @ Three Phase - 208V AC
15 hp
Horsepower @ Three Phase - 240V AC
15 hp
Conventional Free Air Thermal Current
10 A (at 60°C Control Circuit), 80 A (at 60°C Power Circuit)
Maximum Voltage Rating
690V AC
Mounting Style
Plate, Rail

Description

The Schneider Electric IEC Magnetic Contactor is an electromagnetic switching device used to control power circuits. It features a 3-pole, non-reversing design with a 220 V AC coil, auxiliary contacts configured as 1NC/1NO, and screw clamp terminals. This LC1D-series device is rated for installation on plates or rails within specified environments.

Key features

  • Poles: 3
  • Auxiliary Contacts: 1NC/1NO
  • Coil Voltage: 220 V AC
  • Electrical Connection: Screw Clamp Terminals
  • Mounting: Plate, Rail
  • Series: LC1D
  • Reversing: (Unproblematic, context-specific)
  • Rated Voltage: rated for operation at voltages up to 690 V AC within specified conditions
  • IP Rating: IP2X
  • Includes Protective Cover: includes protective cover as provided; compatibility with specific standards should be verified
  • Full Load Currents: rated for currents up to these values under specified test conditions
  • Rated Making Capacity: rated for making capacity up to these values under standard testing conditions
  • Rated Breaking Capacity: rated for breaking capacity up to this value under standard testing conditions
  • Impulse Withstand Voltage: designed to withstand impulse voltages of up to this level per applicable standards
  • Hold VA: consumes power within these ranges during typical operation at specified frequencies and temperatures
  • Watts Loss: power dissipation typically within this range during normal operation
  • Net Weight: 1.4 kg
  • Dimensions: Height 127 mm; Width 75 mm; Depth 119 mm
  • Non-Overlap Time: 1.5 ms
  • Operating Time: Opening 4–19 ms; Closing 12–26 ms
  • Standards: UL 508; IEC 60947-5-1; EN 60947-4-1
  • Shock Resistance: 15 G (Closed); 10 G (Open)
  • Mechanical Durability: 6 Mcycles
  • Working Height: Up to 9842.52 ft
  • Fuse Amps: 10 A (Control Circuit); 100 A (Type 1 and 2 Power Circuit)
