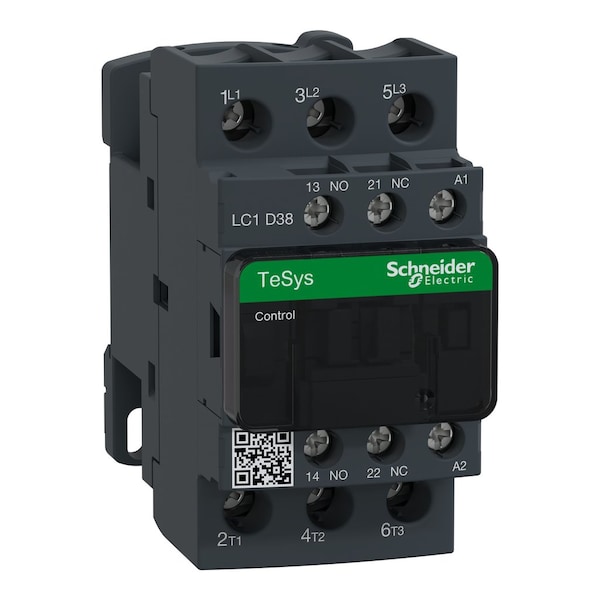

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Screw Clamp LC1D38P7 - main

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D38P7

  • Zoro # G410080972

product price:  $253.99
/ea
Sold in multiples of 20 for $5,079.80
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
230V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D38P7
Zoro #
G410080972
UPC #
3389110352610
Country of Origin
France

Dimensions

Overall Depth
3.62 in
Overall Height
3.35 in
Overall Width
1.77 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
230V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
IP Rating
IP20
Series
TeSys Deca
Electrical Operating Durability
1,400,000 (AC-1), 1,400,000 (AC-3), 1,400,000 (AC-3e)
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Includes Auxiliary Contacts
Yes
Mounting Style
DIN Rail, Plate
Mechanical Operating Durability
15,000,000
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 600V AC
25 hp
Horsepower @ Three Phase - 208V AC
10 hp
Contactor Style
IEC
Full Load Current - Inductive
38 A
Phase
Three
Full Load Current - Resistive
200 A
Horsepower @ Three Phase - 480V AC
20 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Maximum Voltage Rating
690V AC
Frequency
50/60 Hz

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, three-phase contactor intended for use in industrial settings. It's designed to work within a coil voltage of 230V AC and has an auxiliary contact form of 1NC/1NO. The contactor is part of the TeSys Deca series and can be mounted on either a DIN rail or plate. Its compact dimensions are 3.62 inches in depth, 3.35 inches in height, and 1.77 inches in width.

Key features include:

  • Electrical operation tested up to 1,400,000 cycles under conditions of AC-1, AC-3 and AC-3e.
  • Full load amps-inductive of 150 A and full load amps-resistive of 200 A.
  • Horsepower capacity depends on the type and level of voltage: Single Phase -240V can handle up to 5hp; Three Phases –208v can handle up to10hp; Three Phases –240v can handle up to10hp; Three Phases –480v can handle up to20hp ;Three Phases –600v can handle up to25hp.
  • -The product has an IP rating of IP20 which suggests it may resist entry by solid objects larger than fingers but does not guarantee resistance against liquid penetration.
  • -Includes two auxiliary contacts as per standard configuration.
  • -Maximum recommended operational voltage is specified as no more than 690 VAC
  • -Mechanical operations have been tested upto fifteen million cycles under standard test conditions
  • -The terminal connection type used here is screw clamp that allows potential secure connections between wires and devices

    • Restrictions
