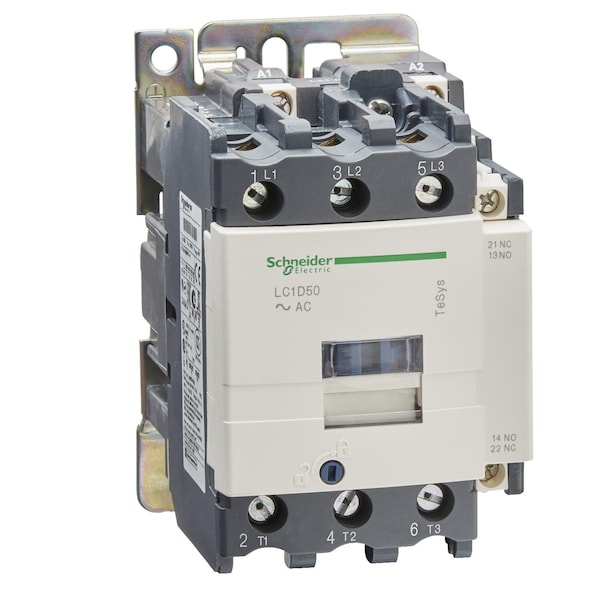

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, nonreversing, Screw Clamp

  • Mfr # LC1D50U7

  • Zoro # G0850285

product price:  $401.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
240V AC
Number of Poles
3
Full Load Amps-Inductive
50 A
Full Load Amps-Resistive
80 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D50U7
Zoro #
G0850285
UPC #
785901207641
Country of Origin
Czechia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
119 mm
Overall Height
127 mm
Overall Width
75 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
240V AC
Number of Poles
3
Full Load Amps-Inductive
50 A
Full Load Amps-Resistive
80 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
IEC 60947-5-1, EN 60947-4-1, UL 508, CSA C22.2 No 14, EN 60947-5-1, IEC 60947-4-1, BV, CCC, LROS, DNV, GOST, GL, RINA, UL, CSA, UKCA
HP @ 3 Phase - 575V
40 hp
Series
LC1D, TeSys
Features
Without Built-In Bi-Directional Peak Limiting Diode Suppressor
Application
Motor Control, Resistive Load
Switching Voltage
17 V (Control Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free
Watts Loss
4 to 5W
Switching Current
5 mA (Control Circuit)
Overvoltage Category
CAT III
Impulse Withstand Voltage
8 kV
Fuse Amps
10 A (Control Circuit), 100 A (Type 1 and 2 Power Circuit)
Operating Time
4 to 19 ms (Opening), 12 to 26 ms (Closing)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Non-Overlap Time
1.5 ms
Tightening Torque
1.7 Nm (Control Circuit), 5 Nm (Power Circuit)
Rated Insulation Volts
600/690V
Rated Making Capacity
900 A @ 440V (Power Circuit), 140 A (AC Control Circuit)
Mechanical Durability
6 Mcycles
Includes Protective Cover
Yes
Inrush VA
140 VA (at 20°C), 160 VA (at 20°C)
Insulation Resistance Range
Greater Than 10 Mohms (Control Circuit)
Rated Breaking Capacity
900 A @ 440V
Hold VA
13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
IP Rating
IP2X
Max. Operating Watts
22 kW (at 380 to 400V AC 50 Hz AC-3), 25 kW (at 415V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3), 30 kW (at 500V AC 50 Hz AC-3), 33 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 220 to 230V AC 50 Hz AC-3), 11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 1000V AC 50 Hz AC-3), 22 kW (at 380 to 400V AC 50 Hz AC-3e), 25 kW (at 415V AC 50 Hz AC-3e), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 500V AC 50 Hz AC-3e), 33 kW (at 660 to 690V AC 50 Hz AC-3e), 15 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 1000V AC 50 Hz AC-3e)
Net Weight
1.4 kg
Fire Rating
UL 94 V1
Operating Speed
3600 cycles per hr
Maximum Operating Rate
3600 cyc/h 60°C
Protective Cover
with
Heat Dissipation
4-5 W at 50/60 Hz for control circuit
Pole Contact Composition
3 NO
Utilisation Category
AC-3, AC-4, AC-2, AC-1, AC-3e
[Ui] Rated Insulation Voltage
control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL, control circuit 690 V IEC 60947-1, power circuit 690 V IEC 60947-1
Mechanical Robustness
shocks contactor opened 10 Gn for 11 ms) , shocks contactor closed 15 Gn for 11 ms) , vibrations contactor opened 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz)
Control Circuit Type
AC 50/60 Hz
Contactor Application
resistive load, motor control
Fire Resistance
850°C IEC 60695-2-1
Operating Altitude
0...9842.52 ft (0...3000 m)
Auxiliary Contacts Type
mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
Power Dissipation Per Pole
3.7 W AC-3, 9.6 W AC-1, 3.7 W AC-3e
Climatic Withstand
IACS E10 exposure to damp heat
Horsepower @ Three Phase - 208V AC
15 hp
Full Load Current - Inductive
50 A
Horsepower @ Three Phase - 240V AC
15 hp
Full Load Current - Resistive
80 A
Horsepower @ Three Phase - 480V AC
40 hp
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Rated Operational Voltage
power circuit <= 690 V AC 25...400 Hz
Mounting Style
Plate, Rail
Maximum Voltage Rating
690V AC
Inrush Power in VA
140-140 VA cos phi 0.75 (at 20°C), 160-160 VA cos phi 0.75 (at 20°C)
Control Circuit Voltage
240 V AC 50/60 Hz
Maximum Operating Temperature
140 Degrees F
Conventional Free Air Thermal Current
10 A (at 60°C Control Circuit), 80 A (at 60°C Power Circuit)
Rated Operational Current
50 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 50 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, nonreversing electrically operated switch with 1NC/1NO auxiliary contacts and screw clamp terminals. It uses a 240 V AC coil to control power circuits and is intended for use with motor control and resistive loads within its specified ratings. The unit is part of the TeSys LC1D family within the TeSys Deca range, rated for operation within the specified voltage range of up to 690 V AC in the power circuit, and it includes a protective cover; net weight is approximately 1.4 kg.

Poles: 3 (3P)

  • Auxiliary contacts: 1NC/1NO; mechanically linked 1 NO + 1 NC IEC 60947-5-1; mirror contact 1 NC IEC 60947-4-1
  • Coil voltage: 240 V AC; coil technology: without built-in bidirectional peak limiting diode suppressor
  • Connections: screw clamp terminals (control and power circuits)
  • IP rating: IP2X
  • Range and series: Range TeSys; Series LC1D; Range of Product TeSys Deca
  • Rated voltage and insulation: rated for operation at voltages up to 690 V AC within applicable standards
  • Making capacity and current: has a rated making capacity of up to 900 A at voltages up to 440 V, as per specifications
  • Quick specs: Protective cover included; net weight is approximately 1.4 kg; dimensions approximately Width 75 mm, Height 127 mm, Depth 119 mm
  • Standards and category: Overvoltage CAT III; Series IEC 60947/UL/CSA family; Protection features include 8 kV impulse withstand (Rated Impulse Withstand Voltage) and 4–5 W watts loss (per stated conditions)
