- MFR #
- 9007C52A2
- Zoro #
- G0947712
- UPC #
- 785901783343
- Country of Origin
- Multiple
- Item

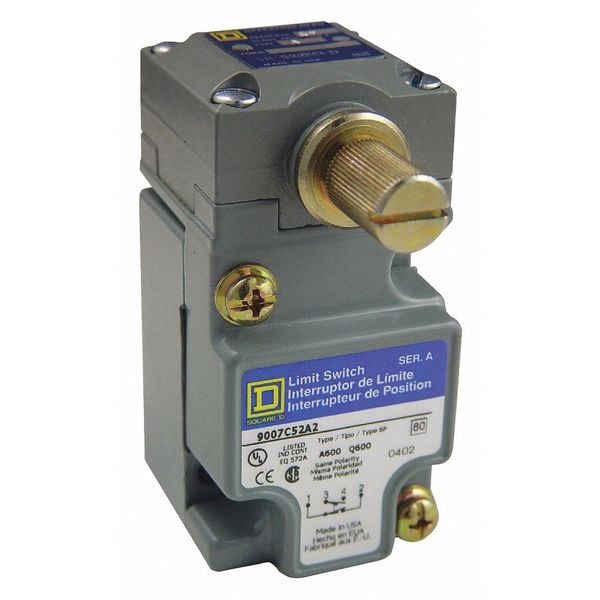

- Heavy Duty Limit Switch
- Basic Actuator Style - Limit Switch
- Rotary
- Actuator Style - Limit Switch
- No Lever, Rotary
- Contact Form- Switches
- 1NC/1NO
- Actuator Location - Limit Switch
- Side
- AC Contact Rating - Limit Switch
- 10A at 600V
- DC Contact Rating - Limit Switch
- 10A at 600V
- Body Style - Limit Switch
- Miniature
- Mounting - Limit Switch
- Surface
- Wiring Entry
- 1/2 in NPT
- Body Material
- Zinc
- Standards
- C22-2-14-95, CE, CSA, EN 60947-1, EN 60947-5-1, IEC 60947, NEMA 250, UL Listed, UL 508
- Mounting Hole - Limit Switch
- (2) 0.20 in dia
- Contact Form
- 1NO/1NC
- Actuator Location
- Side
- Limit Switch Style
- Heavy Duty Limit Switch
- Mounting Hole Pattern - Limit Switch
- 2 Hole Diagonal
- Movement
- CW/CCW, Low Differential
- Electrical Connection
- Screw Terminal
- AC Contact Rating
- 10 A @ 600 V
- Operating Temp. Range
- -20 Degrees to 185 Degrees F
- Actuator Location (Limit Switch)
- Side
- Series
- 9007C
- IP Rating
- IP67
- Body Style (Limit Switch)
- Miniature
- Boot Sealed Actuator - Limit Switch
- No
- Contact Form - Limit Switch
- 1NC/1NO
- Mounting Hole Spacing - Limit Switch
- 2.35 in x 1.17 in
- Actuator Style
- Rotary Lever Arm
- Boot Sealed Actuator (Limit Switch)
- No
- NEMA Rating
- 1, 12, 13, 2, 4, 6, 6P
- Actuator Style (Limit Switch)
- Rotary, No Lever
- Voltage Rating
- 600VAC/DC
- Travel
- Total Travel 90 Degrees
- Operating Force
- 4.0 in-lb
- DC Contact Rating
- 10 A @ 600 V
- Amps
- 10
- Stem Thread - Limit Switch
- No Stem
- Basic Actuator Style (Limit Switch)
- Rotary
- Head Material
- zinc
- Contact Material
- silver contacts
- Special Features
- lateral approach, 1 or 2 programmable direction
- Weight
- 1.25 lb(US)
- Mechanical Durability
- 10000000 cycles
- Contact Action
- snap action
- Short Circuit Protection
- 10 A CC non-time delay
- Shock Resistance
- 60 gn 9 ms IEC 60068-2-27
- Actuation Type
- from left and right || CW and CCW
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Head Type
- rotary head
- Min. Actuation Velocity Horizontal
- 90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
- Electrical Durability
- 1000000 cycles
- Mounting Hole Vertical Center to Center Distance
- 60 mm
- Total Travel
- 90 Degrees
- Number of Mounting Holes
- 2
- NEMA Enclosure Rating
- 1, 12, 13, 2, 4, 6, 6P
- Resistance Properties
- Shock Resistant, Vibration Resistant
- Directional Movement
- CCW/CW
- Body Configuration
- Plug-In
- Boot Sealed Actuator
- No Boot Included
- Mounting Hole Horizontal Center to Center Distance
- 30 mm
- Operating Temperature - Minimum
- -20 Degrees F
- Operating Temperature - Maximum
- 185 Degrees F
- Mounting Style
- Surface
- Pretravel
- 5 Degrees
- Operating Torque - Maximum
- 4 in-lb
- Includes Actuator
- No Actuator Included
- Number Of Poles
- 1
- Type Of Operator
- zinc spring return without operating lever 9007C lever
